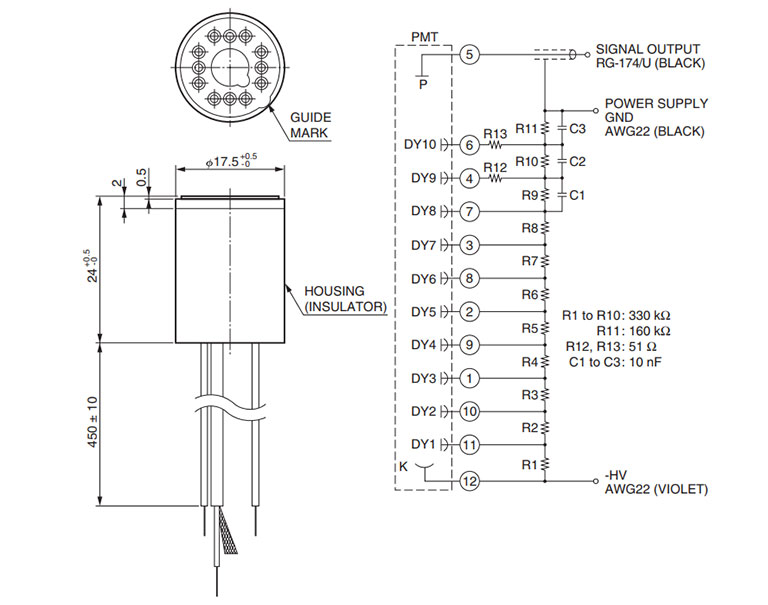

D-type socket assembly
|Applicable PMT||Metal Package PMT R9880U|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||1100 V|
|[Max. Rating] Supply Voltage||1100 V|
|[Max. Rating] Voltage Divider Current||0.32 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||3.46 MΩ|
|Max. Linear Output in DC Mode||16 (at 1100 V) μA|
|Signal Output||DC / Pulse|
