HV power supply module

C13890-15

The C13890-15 is a compact PC-board mountable high voltage power supply, especially designed for photomultiplier tubes. The design offers better performance.
UL recognized (UL60601-1, File No. E470768)

Features

  • Wide input voltage range: +11 V to +16 V
  • Low ripple / noise
  • Compact and lightweight
  • High stability
  • Low power consumption
  • UL recognized (UL60601-1, File No. E470768)

Specifications

Type Compact type
Input Voltage +11 V to +16 V
Input Current (with no load) Typ. 35 mA
Input Current (with full load) Typ. 125 mA
Max. Output Voltage -1250 V
Max. Output Current 0.6 mA
Specification Guaranteed Output Voltage Range -200 V to -1250 V
Line Regulation +/-0.01 % (against +11 V to +16 V input change)
Load Regulation +/- 0.01 %
Ripple/Noise 38 mV
Temperature Coefficient +/-0.01 %/℃
Operating Ambient Temperature -10 ℃ to +60 ℃
Operating Ambient Humidity Below 80 %
Storage Temperature -20 ℃ to +70 ℃
Storage Humidity Below 80 %

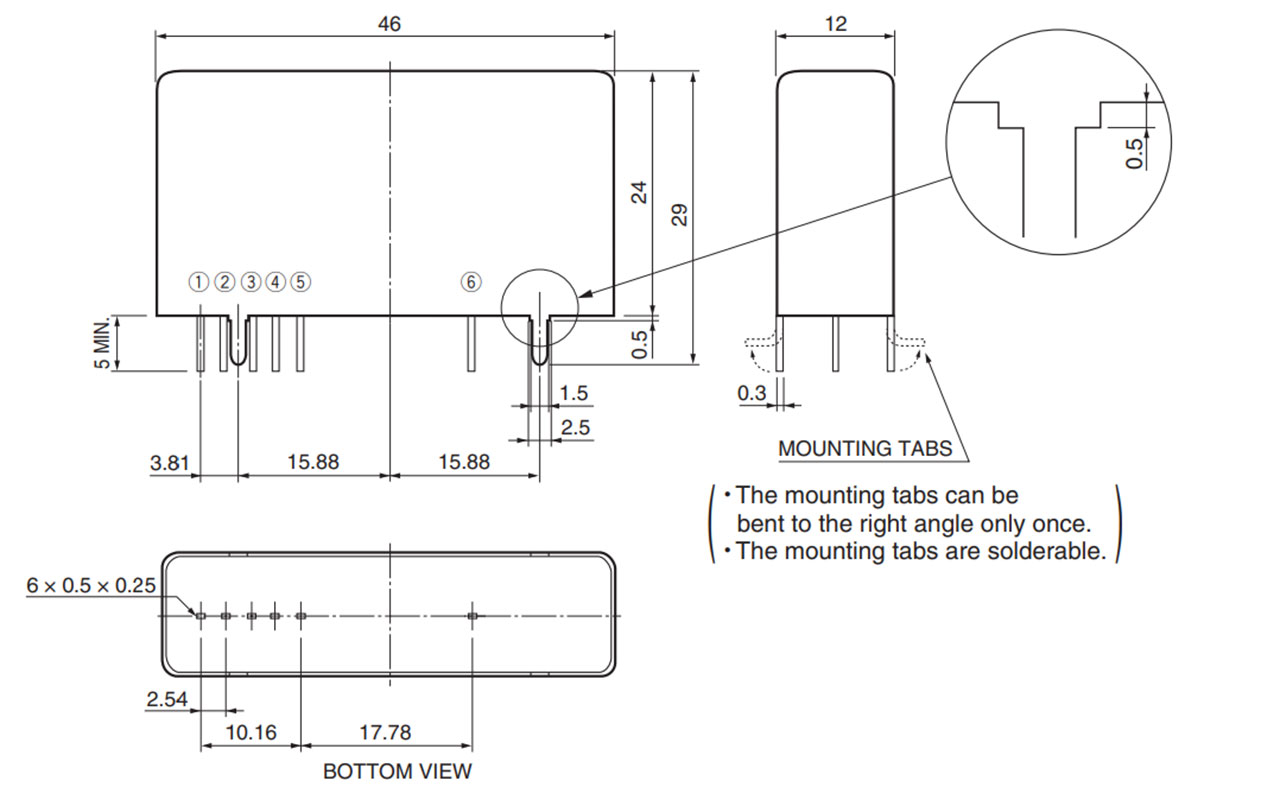

Dimensions (W x H x D) 46 mm x 24 mm x 12 mm
Weight 29 g
