D-type socket assembly

E11807

For Metal Package PMT R11265U, Grounded electrode : Anode, Supply voltage polarity : -

Applicable PMT Metal Package PMT R11265U
Ground Electrode Anode
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1000 V
[Max. Rating] Supply Voltage 1000 V
[Max. Rating] Voltage Divider Current 0.36 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 2.78 MΩ
Max. Linear Output in DC Mode 17 μA (at 1000 V)
Signal Output DC / Pulse
Notes Cable output

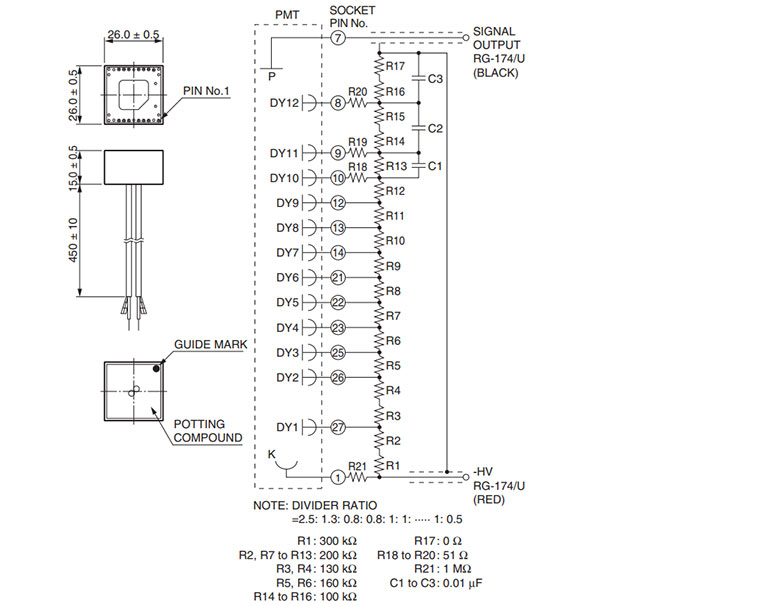

Dimensional outline (Unit: mm)
