D-type socket assembly

E1198-27

For 51mm, 76mm dia. Head-on PMT

Applicable PMT 51 mm, 76 mm Head-on type
Supply Voltage Polarity +
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Supply Voltage 1500 V
[Max. Rating] Voltage Divider Current 0.38 mA
Total Voltage Divider Resistance 4.01 MΩ
Notes For scintillation counting

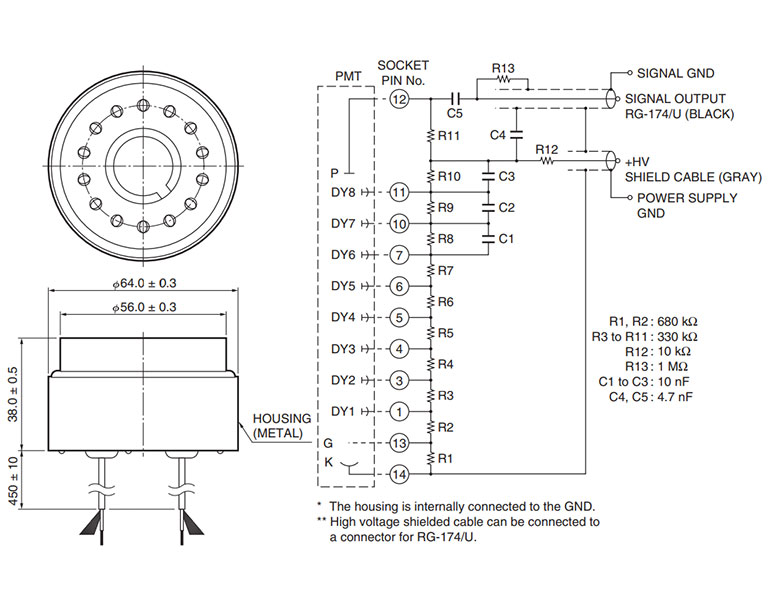

Dimensional outline (Unit: mm)
