HV power supply module

C13890-55

The C13890-55 is a compact PC-board mountable high voltage power supply, especially designed for photomultiplier tubes. The design offers better performance.

Features

  • Wide input voltage range: +11 V to +16 V
  • Low ripple / noise
  • Compact and lightweight
  • High stability
  • Low power consumption

Specifications

Type Compact type
Input Voltage +11 to +16 V
Input Current (with no load) Typ. 35 mA
Input Current (with full load) Typ. 125 mA
Max. Output Voltage 1250 V
Max. Output Current 0.6 mA
Specification Guaranteed Output Voltage Range +200 to +1250 V
Line Regulation ±0.01 (against +11V to +16V input change) %
Load Regulation ±0.01 %
Ripple/Noise 38 mV
Temperature Coefficient ±0.01 %/℃
Operating Ambient Temperature -10 to +60 ℃
Operating Ambient Humidity Below 80 %
Storage Temperature -20 to +70 ℃
Storage Humidity Below 80 %

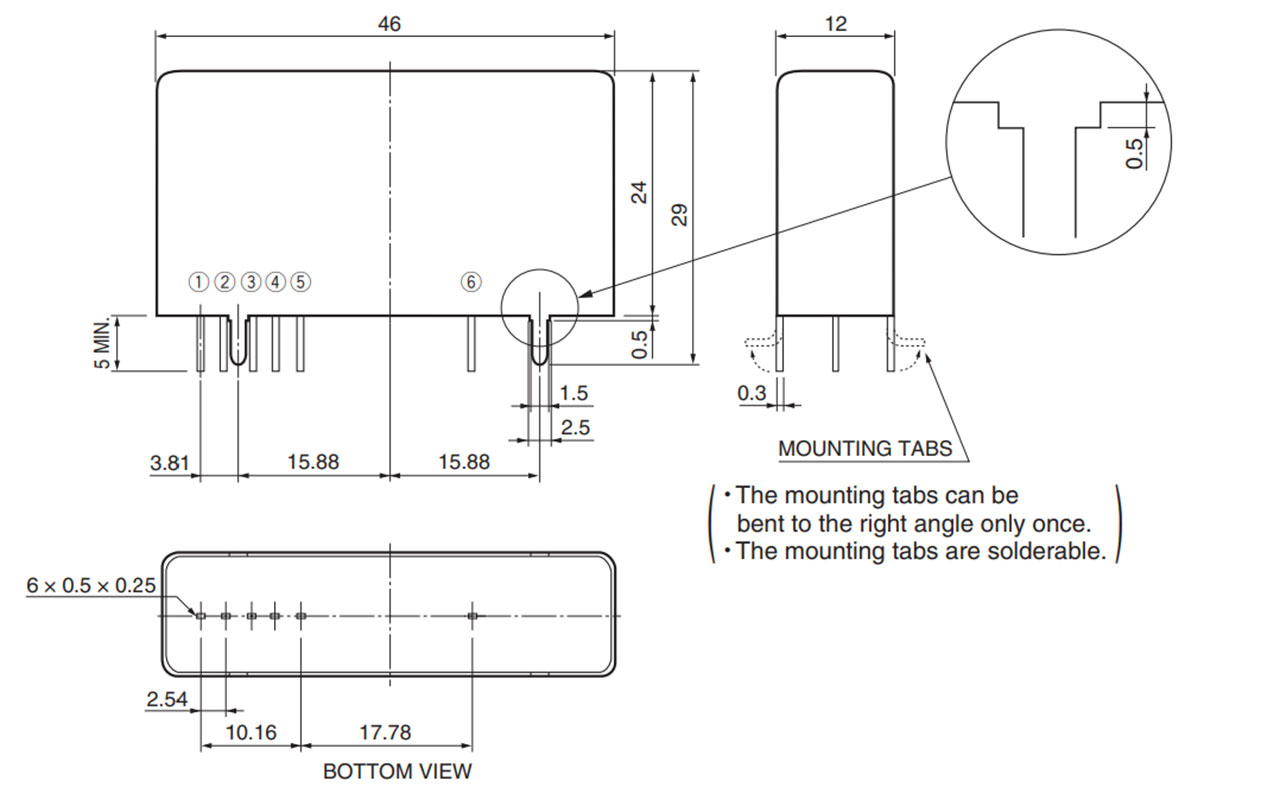

Dimensions (W x H x D) 46 x 24 x 12 mm
Weight 29 g
