D-type socket assembly

E2183-500

For 38mm dia. Head-on PMT

Applicable PMT 38 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 2000 V
[Max. Rating] Supply Voltage 1750 V
[Max. Rating] Voltage Divider Current 0.45 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 3.97 MΩ
Max. Linear Output in DC Mode 22 μA (at 1750 V)
Notes with connector

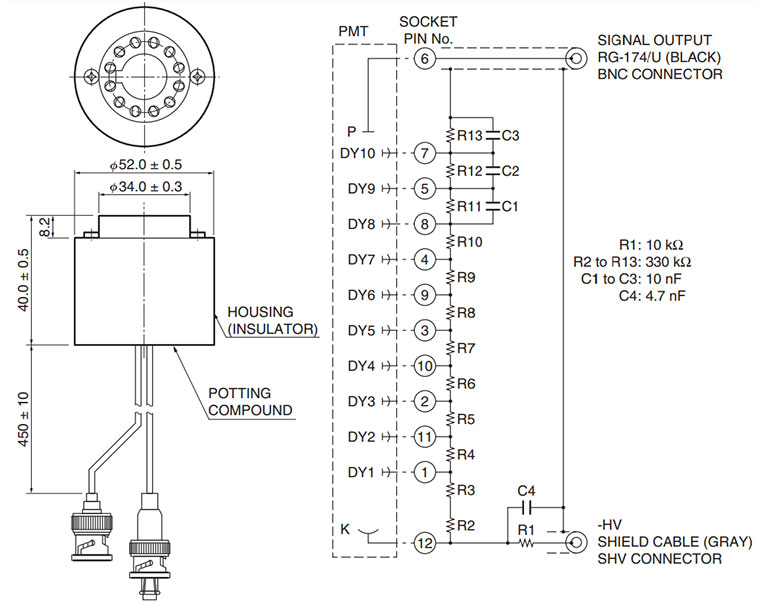

Dimensional outline (Unit: mm)
