HV power supply

C9525-02

Bench-top type multipurpose power supply incorporating a high voltage power supply (maximum output of -2000V for photomultiplier tube) and constant voltage power supplies (+/-5 V, +/-15 V for peripheral devices such as Hamamatsu amplifier units and photon counting unit. The four digit digital voltmeter on the front panel shows the output value of high voltage with high accuracy.

Specifications

Type Bench top type
Input Voltage AC 100 to 240 V
Max. Output Voltage -2000 V
Max. Output Current 1.8 mA
Specification Guaranteed Output Voltage Range -320 to -2000 (variable) V
Line Regulation ±0.005 (For 10 % change in line voltage) %
Load Regulation ±0.03 (For 0 % to 100 % change in load) %
Ripple/Noise 0.003* (*Unit:%) mV
Temperature Coefficient ±0.01 %/℃
Operating Ambient Temperature 0 to +40 ℃
Operating Ambient Humidity Below 85 %
Storage Temperature -20 to +50 ℃
Storage Humidity Below 90 %
Power Consumption 60 VA

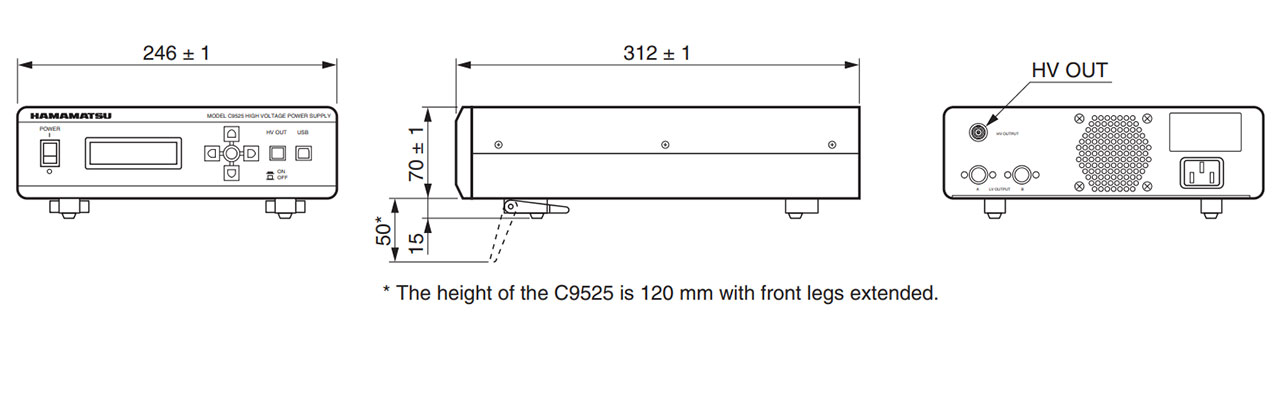

Dimensions (W x H x D) 246 x 85 x 312 mm
Weight Approx. 3.0 kg
