D-type socket assembly

E2253-05

For 19mm dia. Head-on PMT

Applicable PMT 19 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1800 V
[Max. Rating] Supply Voltage 1800 V
[Max. Rating] Voltage Divider Current 0.36 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 5.13 MΩ
Max. Linear Output in DC Mode 17 μA (at 1800 V)
Notes For R3478, with connector

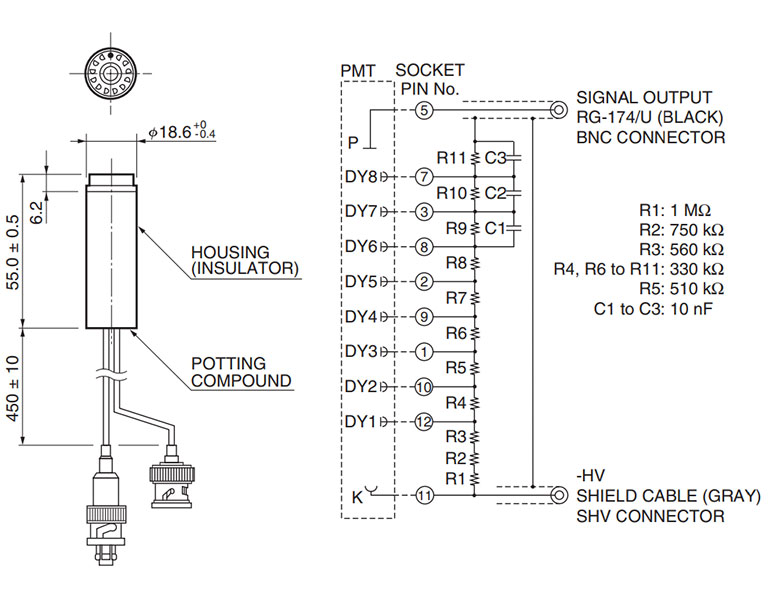

Dimensional outline (Unit: mm)
