D-type socket assembly

E2924-05

For 25mm dia. Head-on PMT

Applicable PMT 25 mm Head-on type
Supply Voltage Polarity +
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Supply Voltage 1250 V
[Max. Rating] Voltage Divider Current 0.3 mA
Total Voltage Divider Resistance 4.3 MΩ
Notes For scintillation counting

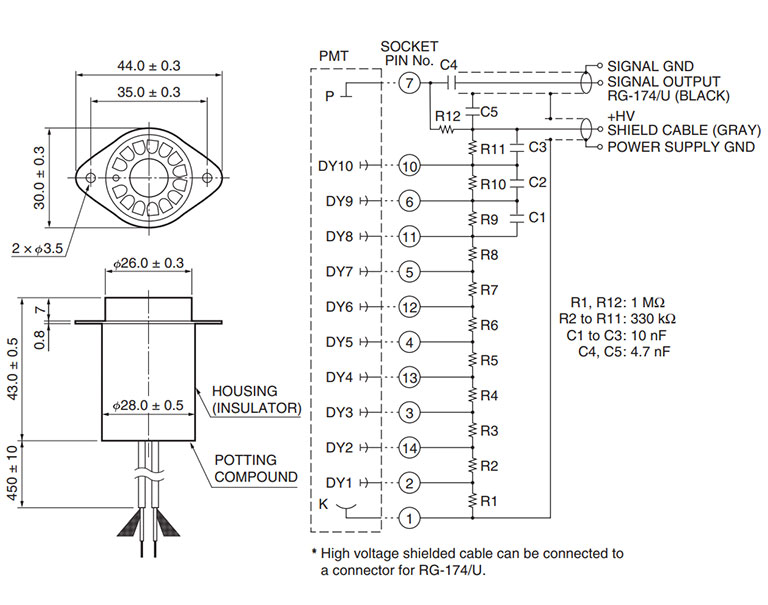

Dimensional outline (Unit: mm)
