D-type socket assembly

E974-29

For 19mm dia. Head-on PMT

Applicable PMT 19 mm Head-on type
Ground Electrode Anode
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1250 V
[Max. Rating] Supply Voltage 1250 V
[Max. Rating] Voltage Divider Current 0.3 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.3 MΩ
Max. Linear Output in DC Mode 14 μA (at 1250 V)
Signal Output DC / Pulse
Notes For R5610A and R5611A, with connector

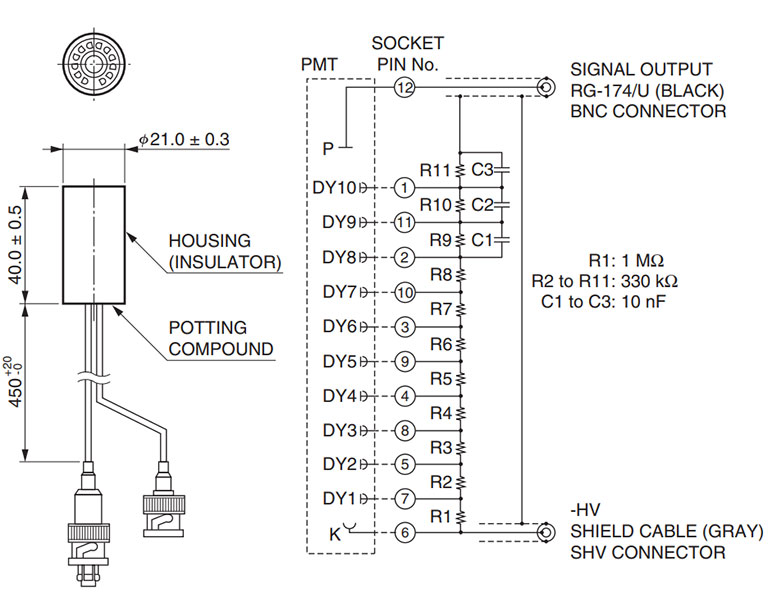

Dimensional outline (Unit: mm)
