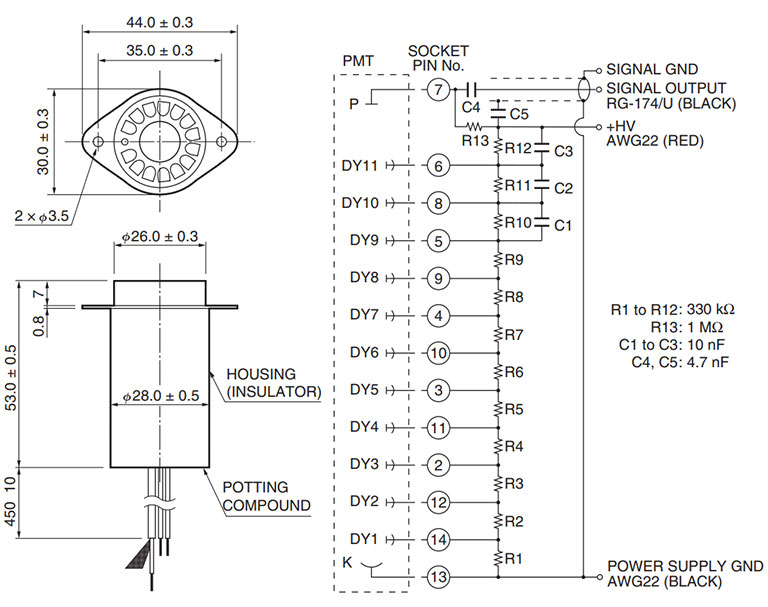

D-type socket assembly
|Applicable PMT||28 mm Head-on type|
|Supply Voltage Polarity||+|
|[Max. Rating] Insulation Voltage (Case-Pins)||1500 V|
|[Max. Rating] Supply Voltage||1500 V|
|[Max. Rating] Voltage Divider Current||0.38 mA|
|Total Voltage Divider Resistance||3.96 MΩ|
|Notes||For scintillation counting|
