D-type socket assembly

E990-29

For 28mm dia. Head-on PMT

Applicable PMT 28 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Supply Voltage 1500 V
[Max. Rating] Voltage Divider Current 0.34 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.48 MΩ
Max. Linear Output in DC Mode 16 μA (at 1500 V)
Notes For R3998-02

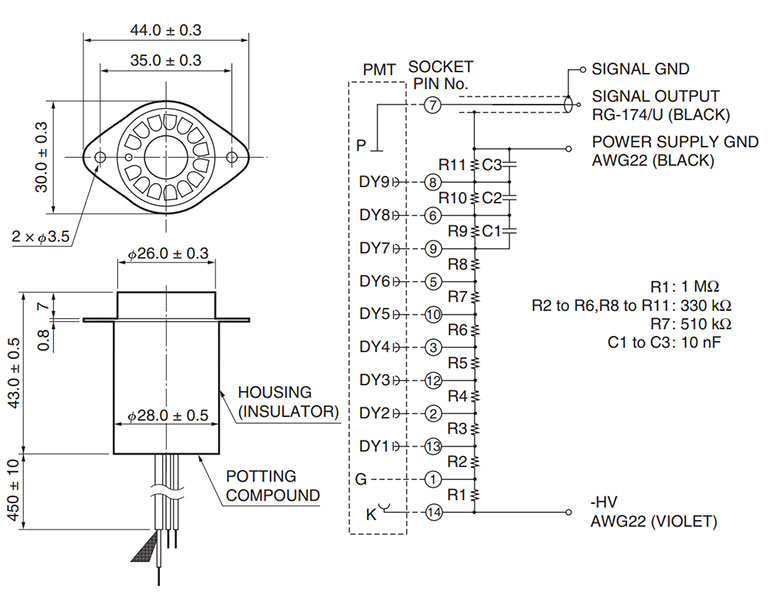

Dimensional outline (Unit: mm)
