HV power supply module

C12446-52

C12446 series is a compact PC-board mountable high voltage power supply module, especially designed for photomultiplier tubes. The design of high current output can offer to drive multiple photomultiplier tubes.

Specifications

Type Compact type
Input Voltage 24 V
Input Current (with no load) Typ. 55 mA
Input Current (with full load) Typ. 550 mA
Max. Output Voltage 1000 V
Max. Output Current 10 mA
Specification Guaranteed Output Voltage Range +200 to +1000 V
Line Regulation ±0.01 (against ±1.2 V input change) %
Load Regulation ±0.01 %
Ripple/Noise 50 mV
Temperature Coefficient ±0.005 %/℃
Operating Ambient Temperature 0 to +50 ℃
Operating Ambient Humidity Below 85 %
Storage Temperature -20 to +60 ℃
Storage Humidity Below 85 %

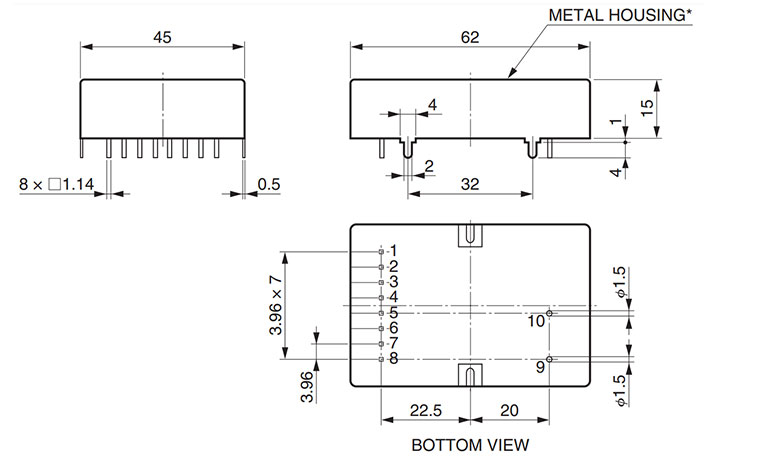

Dimensions (W x H x D) 62 x 15 x 45 mm
Weight 100 g
