HV power supply module

C12766-12

C12766 series is a compact high voltage power supply module, especially designed for photomultiplier tubes. The design of high current output can offer to drive multiple photomultiplier tubes.
C12766-12: UL recognized (UL60601-1, File No. 470768)

Specifications

Type Compact type
Input Voltage 24 V
Input Current (with no load) Typ. 65 mA
Input Current (with full load) Typ. 2100 mA
Max. Output Voltage -1500 V
Max. Output Current 30 mA
Specification Guaranteed Output Voltage Range -240 to -1500 V
Line Regulation ±0.01 (against ±1.2 V input change) %
Load Regulation ±0.01 %
Ripple/Noise 75 mV
Temperature Coefficient ±0.01 %/℃
Operating Ambient Temperature 0 to +50 ℃
Operating Ambient Humidity Below 85 %
Storage Temperature -20 to +60 ℃
Storage Humidity Below 85 %

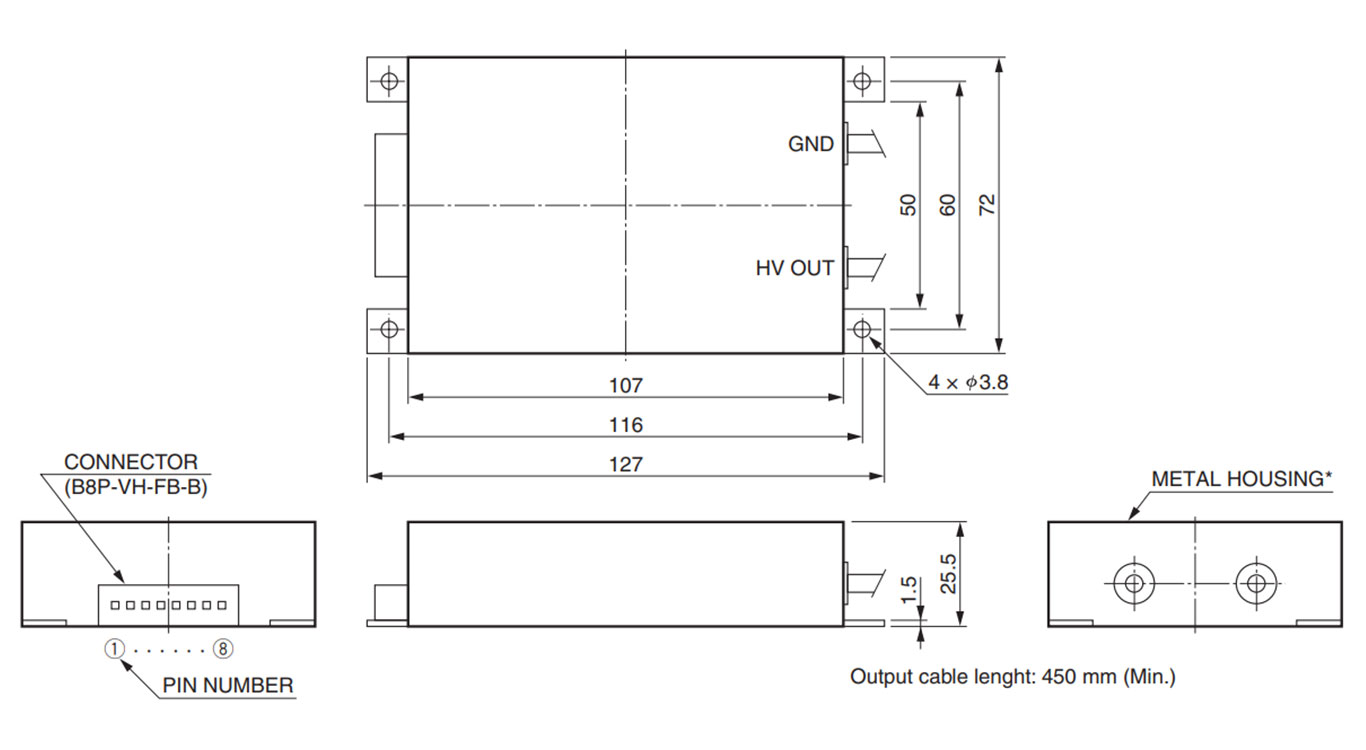

Dimensions (W x H x D) 107 x 25.5 x 72 mm
Weight 290 g
