HV power supply module

C12766-52

C12766 series is a compact high voltage power supply module, especially designed for photomultiplier tubes. The design of high current output can offer to drive multiple photomultiplier tubes.

Specifications

Type Compact type
Input Voltage 24 V
Input Current (with no load) Typ. 65 mA
Input Current (with full load) Typ. 2100 mA
Max. Output Voltage 1500 V
Max. Output Current 30 mA
Specification Guaranteed Output Voltage Range +240 to +1500 V
Line Regulation ±0.01 (against ±1.2 V input change) %
Load Regulation ±0.01 %
Ripple/Noise 75 mV
Temperature Coefficient ±0.01 %/℃
Operating Ambient Temperature 0 to +50 ℃
Operating Ambient Humidity Below 85 %
Storage Temperature -20 to +60 ℃
Storage Humidity Below 85 %

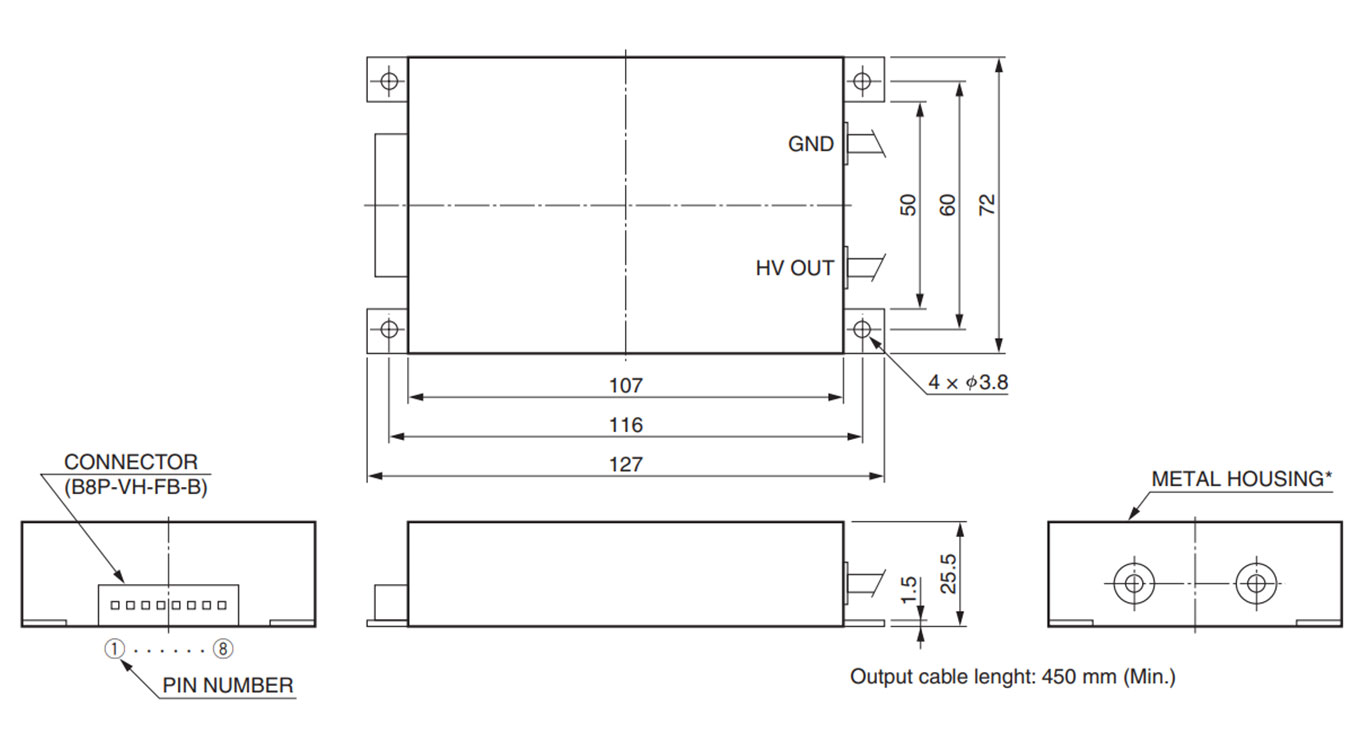

Dimensions (W x H x D) 107 x 25.5 x 72 mm
Weight 290 g
