HV power supply module

C16794-12

The C16794-12 is high-voltage power supply module for photomultiplier tubes featuring high-voltage output. Max. output voltage: -3600 V

Type Compact type
Input Voltage +24 V +/-1.2 V
Input Current (with no load) Typ. 80 mA
Input Current (with full load) Typ. 420 mA
Max. Output Voltage -3600 V
Max. Output Current 2 mA
Specification Guaranteed Output Voltage Range -600 V to -3600 V
Line Regulation +/-0.01 % (against +/-1.2 V input change)
Load Regulation +/-0.01 %
Ripple/Noise 100 mV
Temperature Coefficient +/-0.02 %/℃
Operating Ambient Temperature 0 ℃ to +50 ℃
Operating Ambient Humidity Below 85 %RH
Storage Temperature -20 ℃ to +60 ℃
Storage Humidity Below 85 %RH
Dimensions (W x H x D) 90 mm x 18.5 mm x 60 mm
Weight 240 g

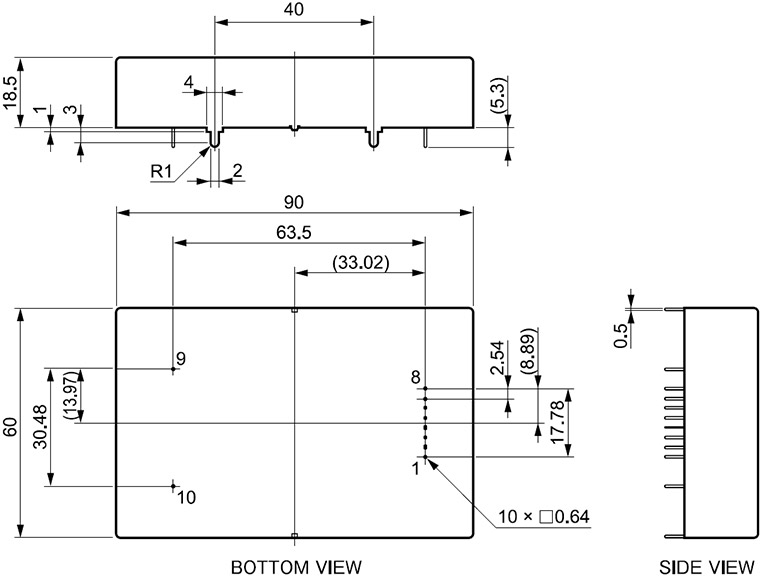

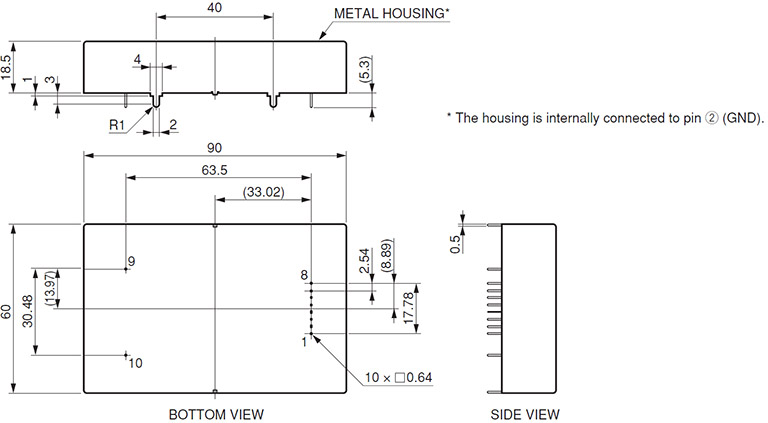

Dimensional outline (Unit: mm)
