HV power supply module
C9619-01 is a compact PC-board mountable high voltage power supply module, especially designed for photomultiplier tubes. Variable Output Voltage Range : 0 to -2000 V, Specification Guaranteed Output Voltage Range : -320 to -2000 V.
|Input Voltage||12 V|
|Input Current (with no load) Typ.||100 mA|
|Input Current (with full load) Typ.||460 mA|
|Max. Output Voltage||-2000 V|
|Max. Output Current||2 mA|
|Specification Guaranteed Output Voltage Range||-320 to -2000 V|
|Line Regulation||±0.01 (against ±1V input change) %|
|Load Regulation||±0.01 %|
|Temperature Coefficient||±0.01 %/℃|
|Operating Ambient Temperature||0 to +40 ℃|
|Operating Ambient Humidity||Below 85 %|
|Storage Temperature||-20 to +60 ℃|
|Storage Humidity||Below 90 %|

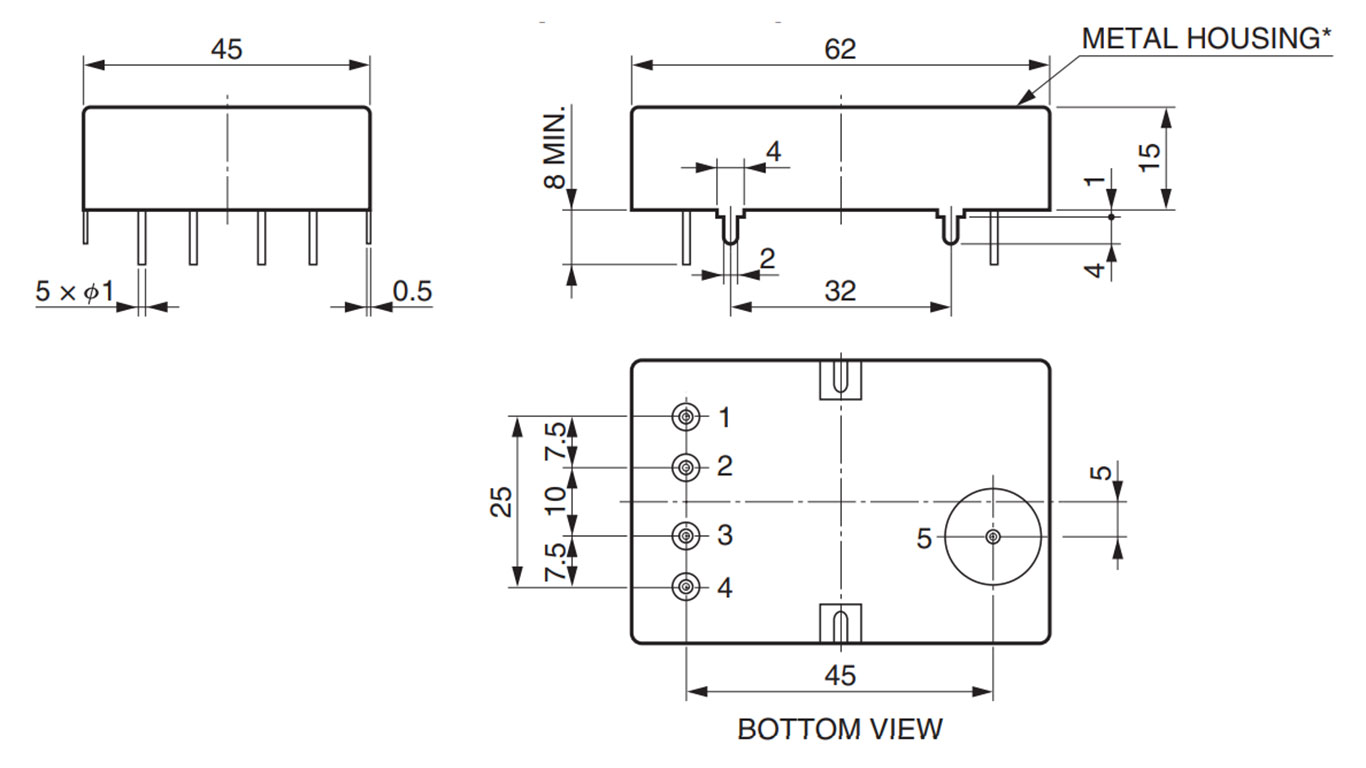

|Dimensions (W x H x D)||62 x 15 x 45 mm|
