HV power supply module

C9619-50

C9619-50 is a compact PC-board mountable high voltage power supply module, especially designed for photomultiplier tubes. Variable Output Voltage Range : 0 V to -2000 V, Specification Guaranteed Output Voltage Range : +320 V to +2000 V.

Specifications

Type Compact type
Input Voltage 15 V
Input Current (with no load) Typ. 120 mA
Input Current (with full load) Typ. 380 mA
Max. Output Voltage 2000 V
Max. Output Current 2 mA
Specification Guaranteed Output Voltage Range +320 V to +2000 V
Line Regulation +/-0.01 % (against +/-1 V input change)
Load Regulation +/-0.01 %
Ripple/Noise 60 mV
Temperature Coefficient +/-0.01 %/℃
Operating Ambient Temperature 0 ℃ to +40 ℃
Operating Ambient Humidity Below 85 %
Storage Temperature -20 ℃ to +60 ℃
Storage Humidity Below 90 %

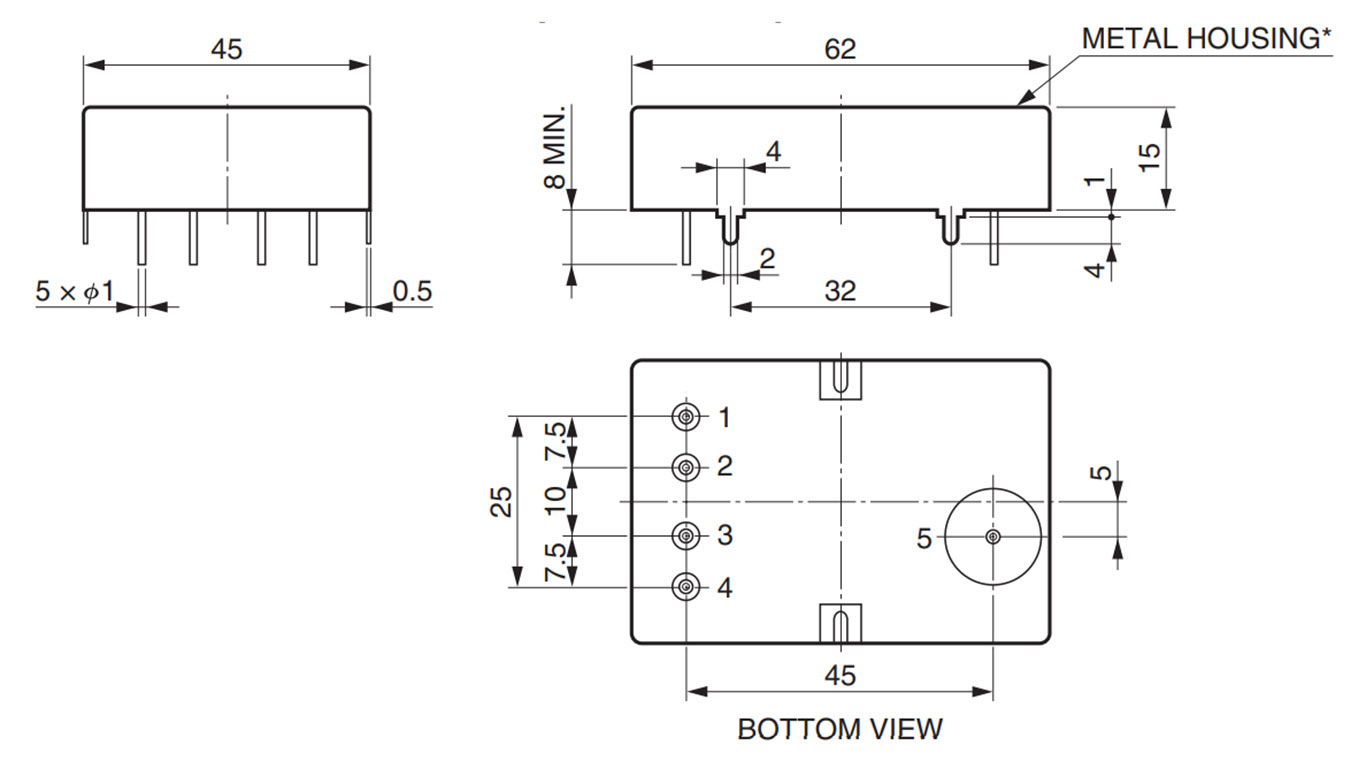

Dimensions (W x H x D) 62 mm x 15 mm x 45 mm
Weight 100 g
