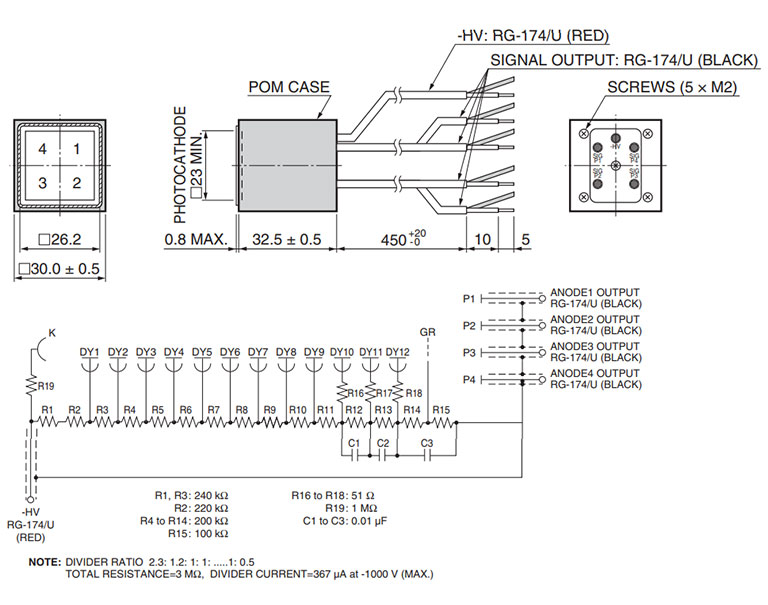

Photomultiplier tube assembly
30 x 30 mm metal package type, SBA(Super bialkali) / UBA(Ultra bialkali) photocathode, Effective area : 23 x 23 mm
H13226A-100 : Spectral response : 300 to 650 nm, SBA
H13226A-200 : Spectral response : 300 to 650 nm, UBA
H13226A-103 : Spectral response : 185 to 650 nm, SBA
H13226A-203 : Spectral response : 185 to 650 nm, UBA
|Assembly Size||30 x 30 mm|
|PMT Tube Size||- mm|
|Built-in PMT Type No.||R11265U-M4 series|
|Photocathode Area Shape||Square|
|Photocathode Area Size||23 x 23 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||400 nm|
|Photocathode Material||Super bialkali (SBA)|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||-1100 V|
|[Max. Rating] Average Anode Current||0.36 mA|
|Anode to Cathode Supply Voltage||-1000 V|
|[Cathode] Luminous Sensitivity Min.||90 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||105 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||13.5|
|[Cathode] Radiant Sensitivity Typ.||110 mA/W|
|[Anode] Luminous Sensitivity Min.||25 A/lm|
|[Anode] Luminous Sensitivity Typ.||105 A/lm|
|[Anode] Gain Typ.||1.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||1 /ch nA|
|[Anode] Dark Current (after 30min.) Max.||4 /ch nA|
|[Time Response] Rise Time Typ.||1.1 ns|
|[Time Response] Transit Time Typ.||5.3 ns|
|[Time Response] Transit Time Spread Typ.||0.39 ns|
|[Anode] Pulse Linearity (2% deviation)||4 mA|
|[Anode] Pulse Linearity (5% deviation)||7 mA|
