Photon counting head

H10682-110W

The H10682-110W is a photon counting head device consisting of a metal package photomultiplier tube, along with a high-speed photon counting circuit and a high-voltage power supply circuit. The high voltage supply for photomultiplier tube and the discrimination level are preset to optimum values, allowing photon counting measurement by just connecting a +5 V supply. This is integrated with a newly designed condenser lens offering high light-collecting efficiency while using a thin profile.

Photocathode Area Shape Round
Photocathode Area Size Dia.21 mm
Wavelength (Short) 380 nm
Wavelength (Long) 700 nm
Wavelength (Peak) 400 nm
Dimension (W x H x D) 24.0 mm x 37.0 mm x 47.0 mm
Input Voltage +4.75 V to +5.25 V
Max. Input Voltage 6 V
Max. Input Current 40 mA
Count Senstitivity at 400 nm Typ. 3.8 x 105 s-1・pW-1
Count Senstitivity at 500 nm Typ. 3.0 x 105 s-1・pW-1
Count Senstitivity at 600 nm Typ. 8.8 x 104 s-1・pW-1
Count Senstitivity at 700 nm Typ. 6.0 x 103 s-1・pW-1
Count Linearity 5.0 x 106 s-1
Dark Count Typ. 50 s-1
Dark Count Max. 100 s-1
Pulse-pair Resolution 20 ns
Output Pulse Width 10 ns
Output Pulse Height Min. 2 V
Output Pulse Height Typ. 2.2 V
Recommended Load Resistance 50 Ω
Signal Output Logic Positive logic
Operating Ambient Temperature +5 ℃ to +40 ℃
Storage Temperature -20 ℃ to +50 ℃
Weight 50 g

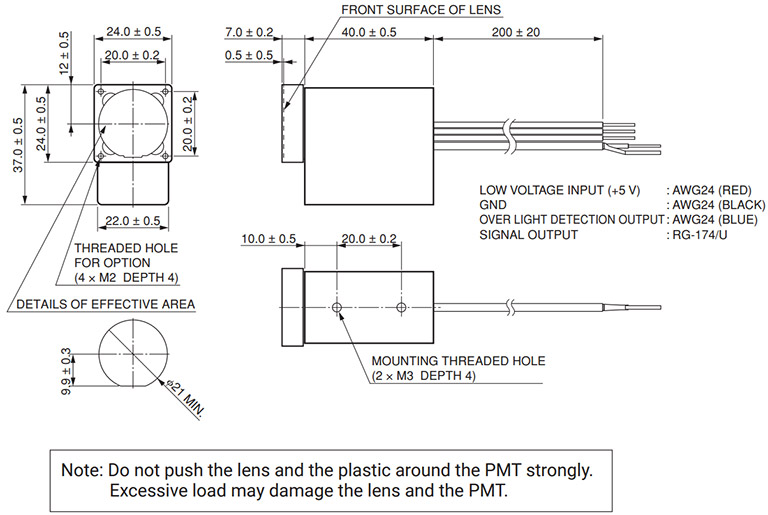

Dimensional outline (Unit: mm)
