Photomultiplier tube

R1513

133mm dia., Head-on type, Mutialkali photocathode (Effective area : 111 mm dia./Spectral response : 300 nm to 850 nm)

Type Head-on type
Tube Size Dia.127 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.111 mm
Wavelength (Short) 300 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 420 nm
Spectral Response Curve Code 500K
Photocathode Material Multialkali
Window Material Borosilicate glass
Dynode Structure Venetian blind
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 2000 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1500 V
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 150 μA/lm
[Cathode] Red/White Ratio (R-68) Typ. 0.2
[Cathode] Radiant Sensitivity Typ. 64 mA/W
[Anode] Luminous Sensitivity Min. 10 A/lm
[Anode] Luminous Sensitivity Typ. 50 A/lm
[Anode] Radiant Sensitivity Typ. 2.1 x 104 A/W
[Anode] Gain Typ. 3.3 x 105
[Anode] Dark Current (after 30min.) Typ. 30 nA
[Anode] Dark Current (after 30min.) Max. 150 nA
[Time Response] Rise Time Typ. 15 ns
[Time Response] Transit Time Typ. 82 ns

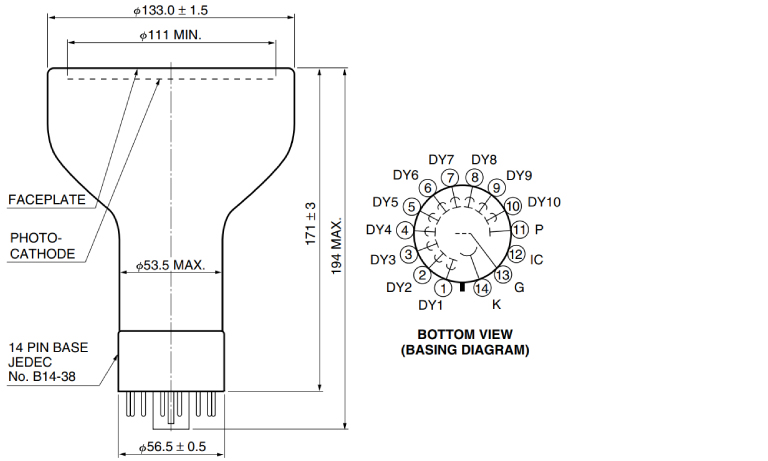

Dimensional outline (Unit: mm)
