Photomultiplier tube

R16768-100

25mm dia., Head-on type, Fast time response, Super-bialkali photocathode (Effective area : 12 mm dia./Spectral response : 160 nm to 650 nm) , For evaluation of fast scintillator, radiation measurement

Type Head-on type
Tube Size Dia.25 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.12 mm
Wavelength (Short) 160 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 400 nm
Spectral Response Curve Code 440 K
Photocathode Material Super bialkali (SBA)
Window Material Silica glass
Dynode Structure Linear-focused
Dynode Stages 8
[Max. Rating] Anode to Cathode Voltage 1750 V
[Max. Rating] Average Anode Current 0.01 mA
Anode to Cathode Supply Voltage 1500 V
[Cathode] Luminous Sensitivity Min. 80 μA/lm
[Cathode] Luminous Sensitivity Typ. 130 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 13.5
[Cathode] Radiant Sensitivity Typ. 110 mA/W
[Anode] Luminous Sensitivity Min. 50 A/lm
[Anode] Luminous Sensitivity Typ. 150 A/lm
[Anode] Radiant Sensitivity Typ. 1.3 x 105 A/W
[Anode] Gain Typ. 1.2 x 106
[Anode] Dark Current (after 30min.) Typ. 3 nA
[Anode] Dark Current (after 30min.) Max. 30 nA
[Time Response] Rise Time Typ. 0.9 ns
[Time Response] Transit Time Typ. 7.8 ns

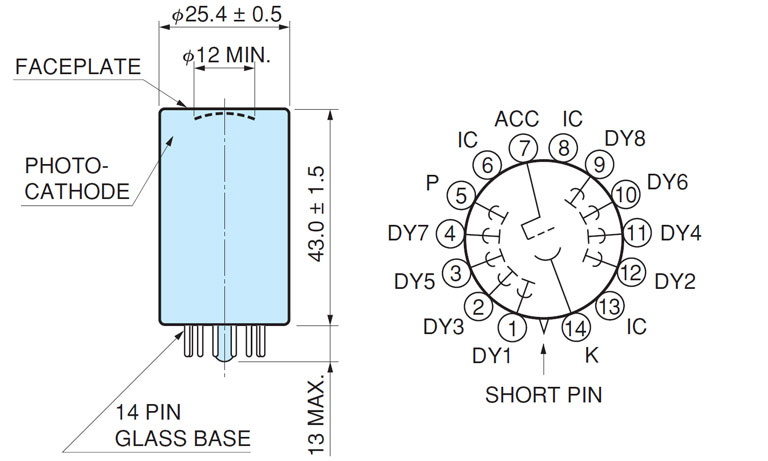

Dimensional outline (Unit: mm)
