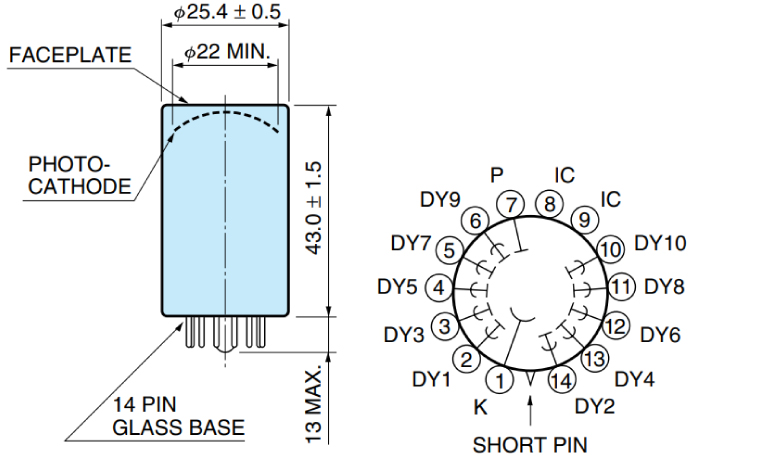

|Tube Size||Dia.25 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.22 mm|
|Wavelength (Short)||160 nm|
|Wavelength (Long)||850 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||500S|
|Dynode Structure||Circular and linear-focused|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||80 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||150 μA/lm|
|[Cathode] Red/White Ratio (R-68) Typ.||0.2|
|[Cathode] Radiant Sensitivity Typ.||64 mA/W|
|[Anode] Luminous Sensitivity Min.||20 A/lm|
|[Anode] Luminous Sensitivity Typ.||75 A/lm|
|[Anode] Radiant Sensitivity Typ.||3.2 x 104 A/W|
|[Anode] Gain Typ.||5.0 x 105|
|[Anode] Dark Current (after 30min.) Typ.||3 nA|
|[Anode] Dark Current (after 30min.) Max.||20 nA|
|[Time Response] Rise Time Typ.||1.5 ns|
|[Time Response] Transit Time Typ.||17 ns|
