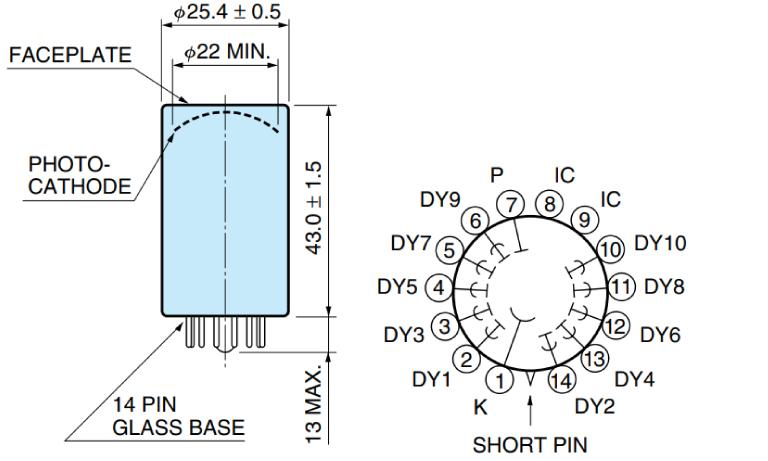

|Tube Size||Dia.25 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.22 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||375 nm|
|Spectral Response Curve Code||402K|
|Photocathode Material||Low noise bialkali|
|Window Material||Borosilicate glass|
|Dynode Structure||Circular and linear-focused|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||30 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||50 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||7|
|[Cathode] Radiant Sensitivity Typ.||55 mA/W|
|[Anode] Luminous Sensitivity Min.||45 A/lm|
|[Anode] Luminous Sensitivity Typ.||100 A/lm|
|[Anode] Radiant Sensitivity Typ.||1.1 x 105 A/W|
|[Anode] Gain Typ.||2.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||0.5 nA|
|[Anode] Dark Current (after 30min.) Max.||4 nA|
|[Time Response] Rise Time Typ.||1.5 ns|
|[Time Response] Transit Time Typ.||17 ns|
