Photomultiplier tube

R7600U-01

30 mm x 30 mm metal package type, Multialkali photocathode (Effective area : 18 mm x 18 mm / Spectral response : 300 nm to 850 nm)

Type Metal package type
Tube Size 30 mm x 30 mm
Photocathode Area Shape Square
Photocathode Area Size 18 mm x 18 mm
Wavelength (Short) 300 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 400 nm
Spectral Response Curve Code 400 K
Photocathode Material Multialkali
Window Material Borosilicate glass
Dynode Structure Metal channel
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 900 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 800 V
[Cathode] Luminous Sensitivity Min. 150 μA/lm
[Cathode] Luminous Sensitivity Typ. 200 μA/lm
[Cathode] Red/White Ratio (R-68) Typ. 0.25
[Cathode] Radiant Sensitivity Typ. 65 mA/W
[Anode] Luminous Sensitivity Min. 50 A/lm
[Anode] Luminous Sensitivity Typ. 200 A/lm
[Anode] Radiant Sensitivity Typ. 7.0 x 104 A/W
[Anode] Gain Typ. 1.0 x 106
[Anode] Dark Current (after 30min.) Typ. 10 nA
[Anode] Dark Current (after 30min.) Max. 50 nA
[Time Response] Rise Time Typ. 1.6 ns
[Time Response] Transit Time Typ. 9.6 ns
[Time Response] Transit Time Spread Typ. 0.35 ns
[Anode] Pulse Linearity (2% deviation) 30 mA
[Anode] Pulse Linearity (5% deviation) 60 mA

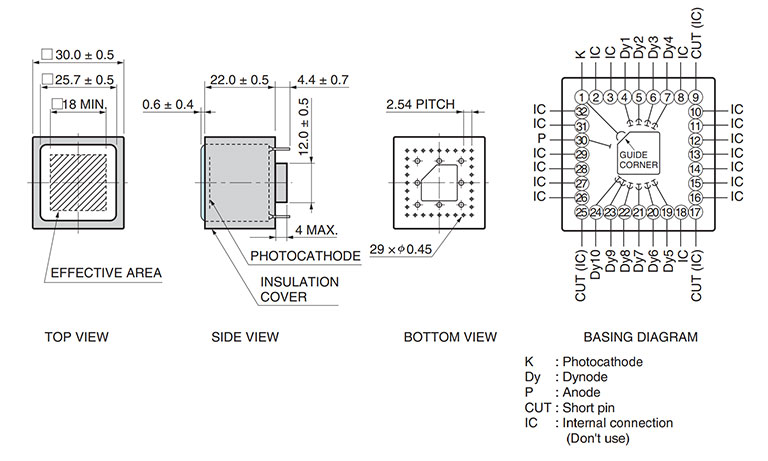

Dimensional outline (Unit: mm)
