Multianode photomultiplier tube

R7600U-100-M4

30 mm x 30 mm metal package type, Super bialkali photocathode (Effective area : 8.9mm x 8.9mm[4ch] / Spectral response : 300nm to 650 nm), 2 x 2 multianode type

Type High Q.E. type
Tube Size 30 mm x 30 mm
Photocathode Area Shape Multianode
Photocathode Area Size 18 mm x 18 mm (M4 ch)
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 400 nm
Spectral Response Curve Code 440 K
Photocathode Material Super bialkali (SBA)
Window Material Borosilicate glass
Dynode Structure Metal channel
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 900 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 800 V
[Cathode] Luminous Sensitivity Min. 90 μA/lm
[Cathode] Luminous Sensitivity Typ. 105 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 13.5
[Cathode] Radiant Sensitivity Typ. 110 mA/W
[Anode] Luminous Sensitivity Min. 25 A/lm
[Anode] Luminous Sensitivity Typ. 140 A/lm
[Anode] Radiant Sensitivity Typ. 1.4 x 105 A/W
[Anode] Gain Typ. 1.3 x 106
[Anode] Dark Current (after 30min.) Typ. 0.5 nA /ch
[Anode] Dark Current (after 30min.) Max. 5 nA /ch
[Time Response] Rise Time Typ. 1.2 ns
[Time Response] Transit Time Typ. 9.5 ns
[Time Response] Transit Time Spread Typ. 0.36 ns
[Anode] Pulse Linearity (2% deviation) 10 mA
[Anode] Pulse Linearity (5% deviation) 30 mA

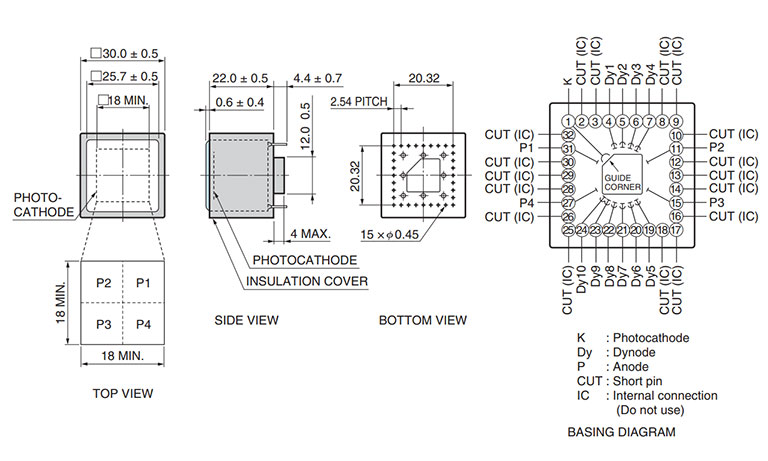

Dimensional outline (Unit: mm)
