Photomultiplier tube

R7600U-300

30 mm x 30 mm metal package type, Extended green bialkali photocathode (Effective area : 18 mm x 18 mm / Spectral response : 300 nm to 650 nm)

Type High Q.E. type
Tube Size 30 mm x 30 mm
Photocathode Area Shape Square
Photocathode Area Size 18 mm x 18 mm
Wavelength (Short) 300 nm
Wavelength (Long) 700 nm
Wavelength (Peak) 420 nm
Spectral Response Curve Code 444 K
Photocathode Material Extended green bialkali
Window Material Borosilicate glass
Dynode Structure Metal channel
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 900 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 800 V
[Cathode] Luminous Sensitivity Min. 120 μA/lm
[Cathode] Luminous Sensitivity Typ. 160 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 14
[Cathode] Radiant Sensitivity Typ. 125 mA/W
[Anode] Luminous Sensitivity Min. 80 A/lm
[Anode] Luminous Sensitivity Typ. 320 A/lm
[Anode] Radiant Sensitivity Typ. 2.5 x 105 A/W
[Anode] Gain Typ. 2.0 x 106
[Anode] Dark Current (after 30min.) Typ. 2 nA
[Anode] Dark Current (after 30min.) Max. 20 nA
[Time Response] Rise Time Typ. 1.6 ns
[Time Response] Transit Time Typ. 9.6 ns
[Time Response] Transit Time Spread Typ. 0.35 ns
[Anode] Pulse Linearity (2% deviation) 30 mA
[Anode] Pulse Linearity (5% deviation) 60 mA

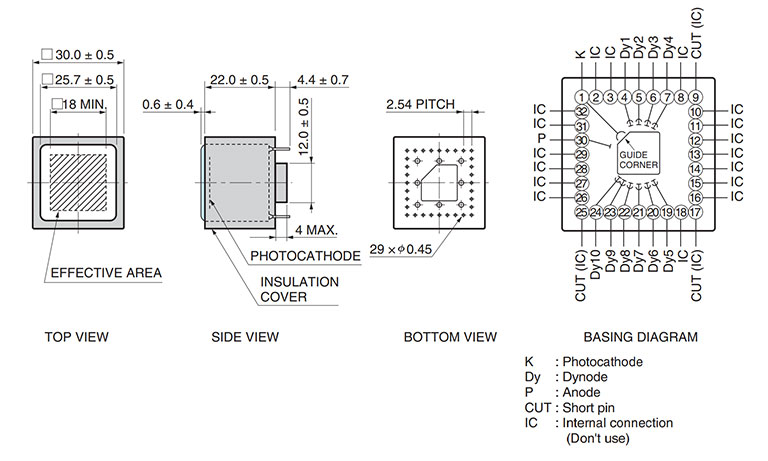

Dimensional outline (Unit: mm)
