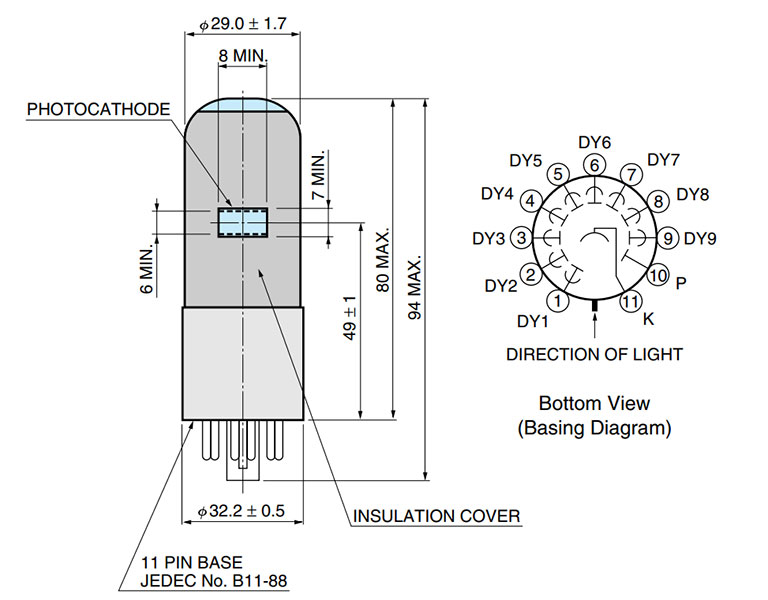

|Tube Size||Dia.28 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||8 x 6 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||900 nm|
|Wavelength (Peak)||400 nm|
|Spectral Response Curve Code||552U|
|Window Material||UV glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||140 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||200 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||7.5|
|[Cathode] Red/White Ratio (R-68) Typ.||0.3|
|[Cathode] Radiant Sensitivity Typ.||68 mA/W|
|[Anode] Luminous Sensitivity Min.||1000 A/lm|
|[Anode] Luminous Sensitivity Typ.||2000 A/lm|
|[Anode] Radiant Sensitivity Typ.||6.8 x 105 A/W|
|[Anode] Gain Typ.||1.0 x 107|
|[Anode] Dark Current (after 30min.) Typ.||300 (s-1) nA|
|[Anode] Dark Current (after 30min.) Max.||500 (s-1) nA|
|[Time Response] Rise Time Typ.||2.2 ns|
|[Time Response] Transit Time Typ.||22 ns|
