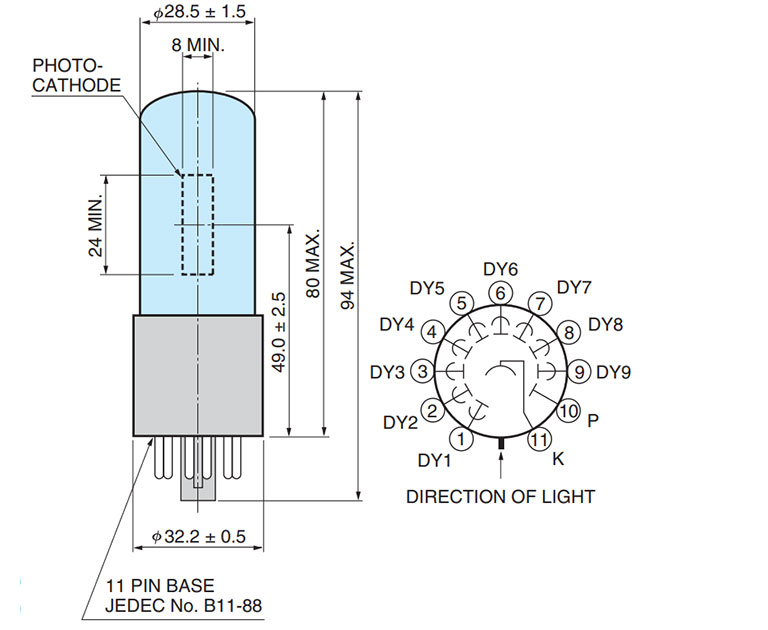

|Tube Size||Dia.28 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||8 x 24 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||900 nm|
|Wavelength (Peak)||450 nm|
|Spectral Response Curve Code||555U|
|Window Material||UV glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||475 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||525 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||15|
|[Cathode] Red/White Ratio (R-68) Typ.||0.4|
|[Cathode] Radiant Sensitivity Typ.||90 mA/W|
|[Anode] Luminous Sensitivity Min.||3000 A/lm|
|[Anode] Luminous Sensitivity Typ.||5000 A/lm|
|[Anode] Gain Typ.||9.5 x 106|
|[Anode] Dark Current (after 30min.) Typ.||10 nA|
|[Anode] Dark Current (after 30min.) Max.||50 nA|
|[Time Response] Rise Time Typ.||2.2 ns|
|[Time Response] Transit Time Typ.||22 ns|
|[Time Response] Transit Time Spread Typ.||1.2 ns|
