Photomultiplier tube

R6351

13mm dia., Side-on type, Bialkali photocathode (Effective area : 4 mm x 13 mm /Spectral response : 160 nm to 650 nm) Silica glass window type of R6350

Type Side-on type
Tube Size Dia.13 mm
Photocathode Area Shape Square
Photocathode Area Size 4 mm x 13 mm
Wavelength (Short) 160 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 340 nm
Spectral Response Curve Code 350S
Photocathode Material Bialkali
Window Material Quartz
Dynode Structure Circular-cage
Dynode Stages 9
[Max. Rating] Anode to Cathode Voltage 1250 V
[Max. Rating] Average Anode Current 0.01 mA
Anode to Cathode Supply Voltage 1000 V
[Cathode] Luminous Sensitivity Min. 20 μA/lm
[Cathode] Luminous Sensitivity Typ. 40 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 5
[Cathode] Radiant Sensitivity Typ. 48 mA/W
[Anode] Luminous Sensitivity Min. 50 A/lm
[Anode] Luminous Sensitivity Typ. 300 A/lm
[Anode] Radiant Sensitivity Typ. 3.6 x 105 A/W
[Anode] Gain Typ. 7.5 x 106
[Anode] Dark Current (after 30min.) Typ. 0.5 nA
[Anode] Dark Current (after 30min.) Max. 5 nA
[Time Response] Rise Time Typ. 1.4 ns
[Time Response] Transit Time Typ. 15 ns

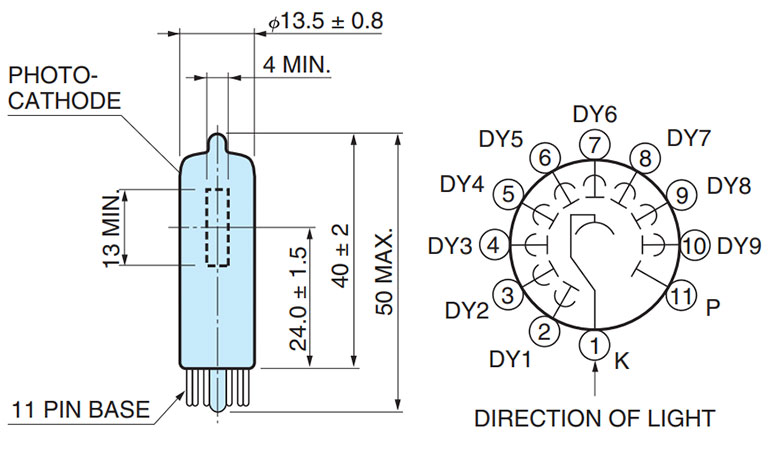

Dimensional outline (Unit: mm)
