Photomultiplier tube

R6358

13mm dia., Side-on type, Multialkali photocathode (Effective area : 4 mm x 13 mm /Spectral response : 185 nm to 850 nm)

Type Side-on type
Tube Size Dia.13 mm
Photocathode Area Shape Square
Photocathode Area Size 4 mm x 13 mm
Wavelength (Short) 185 nm
Wavelength (Long) 830 nm
Wavelength (Peak) 530 nm
Spectral Response Curve Code 561U
Photocathode Material Multialkali
Window Material UV glass
Dynode Structure Circular-cage
Dynode Stages 9
[Max. Rating] Anode to Cathode Voltage 1250 V
[Max. Rating] Average Anode Current 0.01 mA
Anode to Cathode Supply Voltage 1000 V
[Cathode] Luminous Sensitivity Min. 140 μA/lm
[Cathode] Luminous Sensitivity Typ. 200 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 7.5
[Cathode] Red/White Ratio (R-68) Typ. 0.15
[Cathode] Radiant Sensitivity Typ. 70 mA/W
[Anode] Luminous Sensitivity Min. 300 A/lm
[Anode] Luminous Sensitivity Typ. 700 A/lm
[Anode] Radiant Sensitivity Typ. 2.5 x 105 A/W
[Anode] Gain Typ. 3.5 x 106
[Anode] Dark Current (after 30min.) Typ. 0.1 nA
[Anode] Dark Current (after 30min.) Max. 1 nA
[Time Response] Rise Time Typ. 1.4 ns
[Time Response] Transit Time Typ. 15 ns

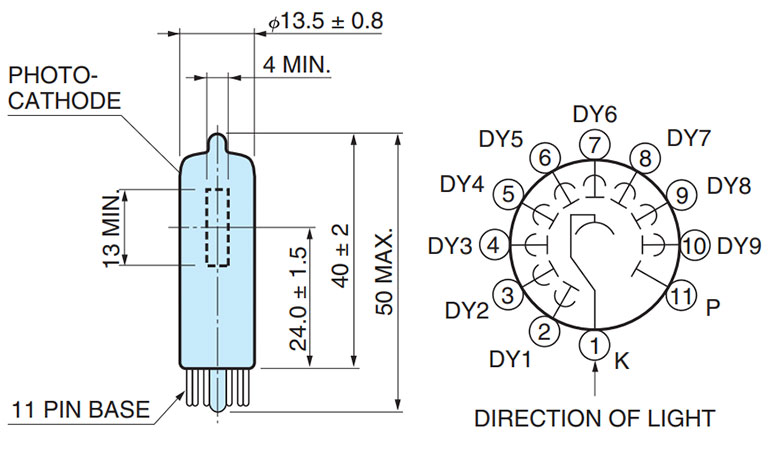

Dimensional outline (Unit: mm)
