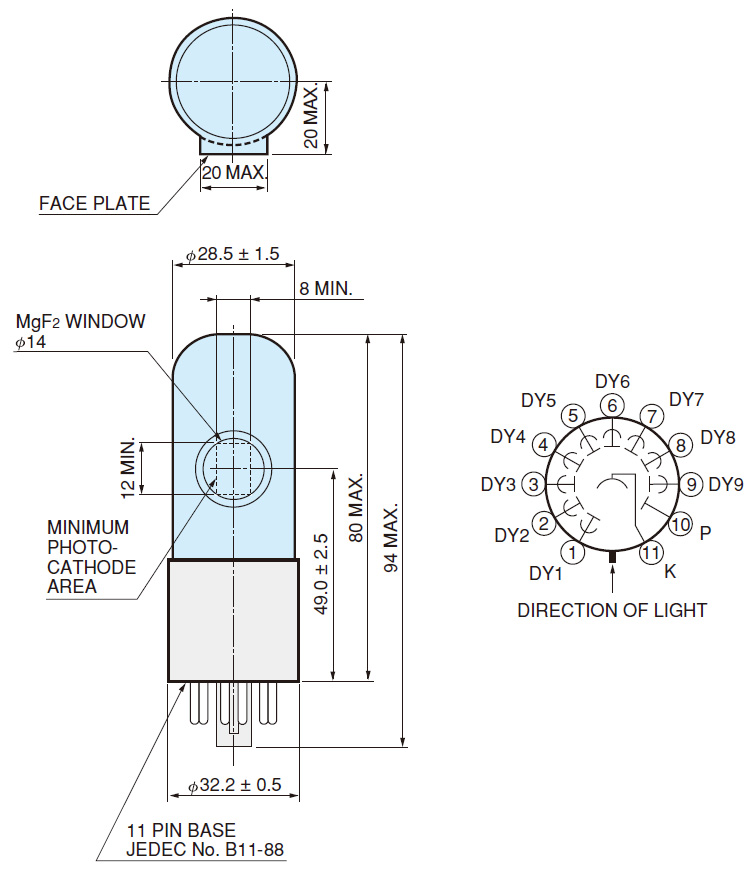

|Tube Size||Dia.28 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||8 mm x 12 mm|
|Wavelength (Short)||115 nm|
|Wavelength (Long)||195 nm|
|Wavelength (Peak)||130 nm|
|Spectral Response Curve Code||150M|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Radiant Sensitivity Typ.||25.5 mA/W (at 121 nm)|
|[Anode] Radiant Sensitivity Typ.||1.0 x 105 A/W (at 121 nm)|
|[Anode] Gain Typ.||3.9 x 106|
|[Anode] Dark Current (after 30min.) Typ.||0.1 nA|
|[Time Response] Rise Time Typ.||2.2 ns|
|[Time Response] Transit Time Typ.||22 ns|
