Mini-spectrometer

C10083CA

For visible to near IR (320 to 1000 nm), High sensitivity type





TM series mini-spectrometers are polychromators integrated with optical elements, an image sensor and a driver circuit. Light to be measured is guided into the entrance port of TM series through an optical fiber and the spectrum measured with the built-in image sensor is output from the USB port to a PC for data acquisition. They are high sensitivity mini-spectrometers employing a back-thinned type CCD image sensor. Their sensitivity is about two orders of magnitudes higher than CMOS type making TM series even more ideal for low-light-level measurement. Mini-spectrometer TM series comes supplied with free evaluation software that allows setting measurement conditions, acquiring and saving data, and displaying graphs. Original measurement software can be designed on an end-user’s side as DLL’s function specifi cation is disclosed.


Features
- High throughput due to transmission grating made of quartz
- Highly accurate optical characteristics
- No external power supply required: Uses USB bus power
- Wide spectral response range
- Easy to install into equipment



Spectral response range 320 to 1000 nm
Spectral resolution (FWHM) (typ.) 5 nm
Spectral resolution (FWHM) (max.) 8 nm
Cooling Non-cooled
A/D resolution 16 bits
Interface USB 1.1
Built-in sensor Back-thinned CCD image sensor
Number of total pixels 2048 pixels
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

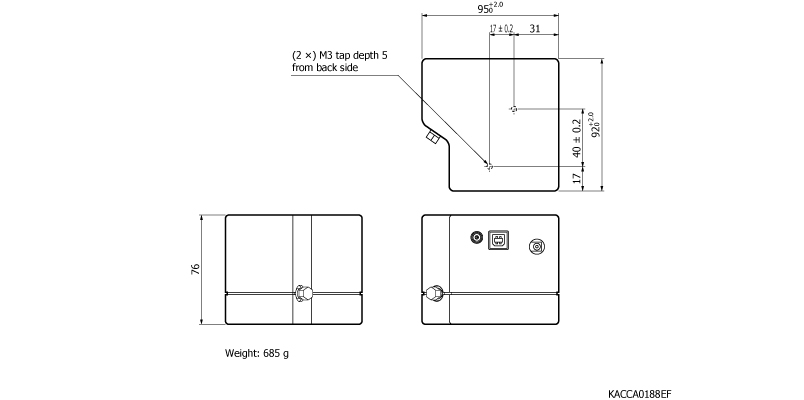

Dimensional outline (unit: mm)
