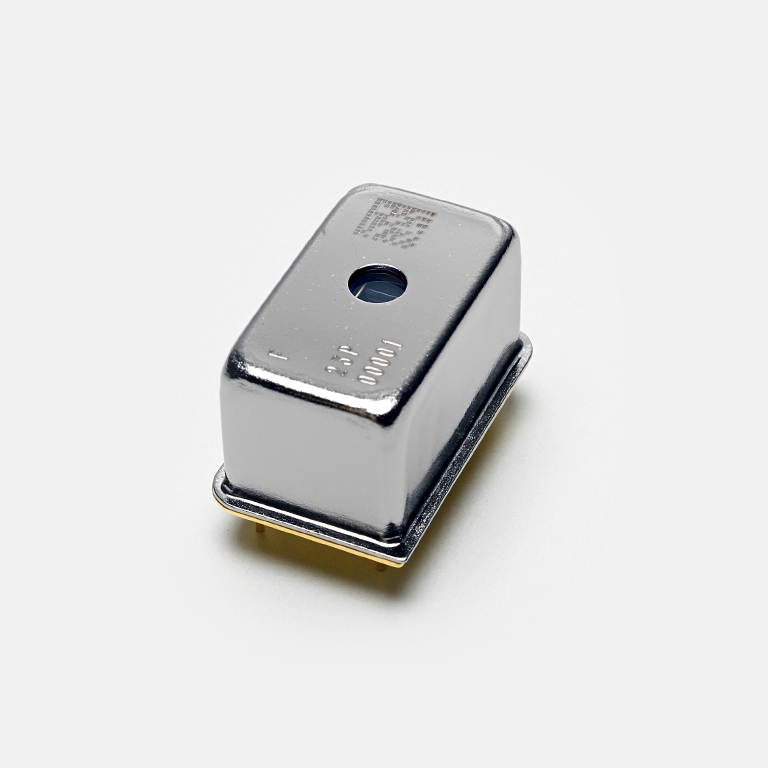

Mini-spectrometer

C12880MA

Fingertip sized, ultra-compact spectrometer head supporting high sensitivity and long wavelength region



The C12880MA is a high-sensitivity, ultra-compact (fingertip sized) spectrometer head that supports the long wavelength region (up to 850 nm). Hermetically sealed packaging provides improved humidity resistance. This product is suitable for integration into a variety of compact devices.


Features

- Fingertip size: 20.1 × 12.5 × 10.1 mm
- Weight: 5 g
- Spectral response range: 340 to 850 nm
- High sensitivity
- Spectral resolution: 15 nm max.
- Trigger-compatible
- Hermetic package: High reliability against humidity
- For integration into mobile measurement equipment
- Wavelength conversion factor is listed on test result sheet.

Measurement example

Color measurement

A demonstration module with a built-in the mini-spectrometer Micro series was used to measure the spectrum of color sample. Because the Micro series is small, it can be mounted on various color measuring devices such as color adjustment of color printers and dimming of LED lighting.

Application examples

Features

Besides a CMOS image sensor chip integrated with an optical slit by etching technology, the C12666MA employs a reflective concave blazed grating formed by nanoimprint. In addition, the glass used in the light path of the previous C10988MA-01 is not used in the C12666MA, making it extremely compact.

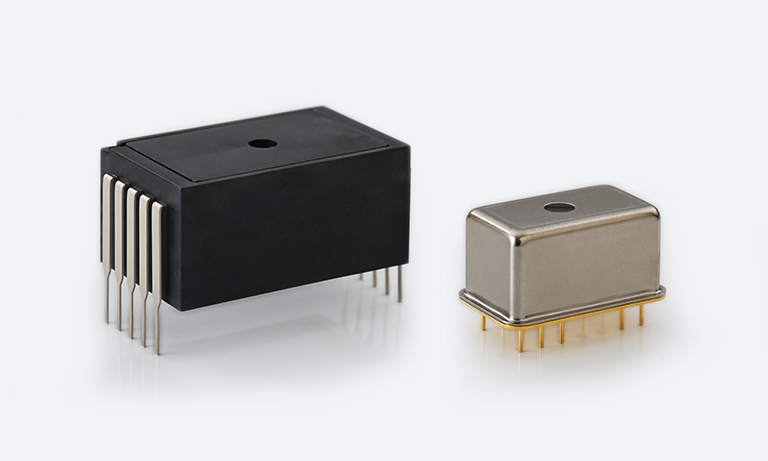

k_micro_comparison

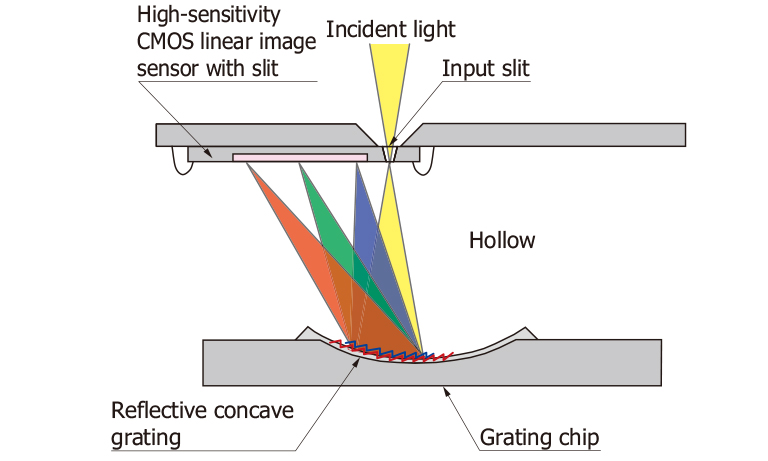

k_micro_structure

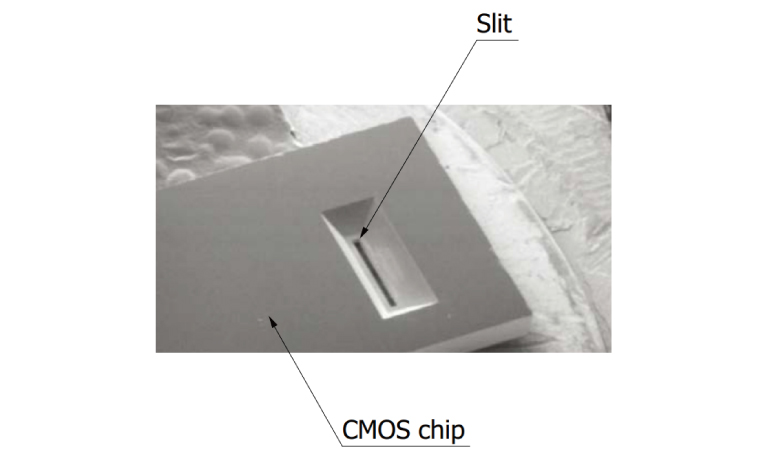

k_micro_slit

Specifications

Spectral response range 340 to 850
Spectral resolution (FWHM) (typ.) 12 nm
Spectral resolution (FWHM) (max.) 15 nm
Cooling Non-cooled
Built-in sensor CMOS linear image sensor with a slit
Number of total pixels 288 pixels
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

Dimensional outline (unit: mm)
