For near IR (1100 to 2200 nm), TE-cooled type


C9914GB of Hamamatsu TG series mini-spectrometers is a polychromator integrated with optical elements and an image sensor. Light to be measured is guided into the entrance port of TG series through an optical fiber and the spectrum measured with the built-in image sensor is output from the USB port to a PC for data acquisition. Cooled type allows accurate measurement with low noise by cooling the image sensor. The TG series comes with sample software, device driver and DLL that let you easily set measurement conditions and acquire, save and graphically display the spectrum data.

- High throughput due to transmission grating made of quartz
- Highly accurate optical characteristics
- Low noise measurement
- Compact design for easy assembly
- Wavelength conversion factor is recorded in internal memory

Spectral response range 1100 to 2200 nm
Spectral resolution (FWHM) (typ.) 6 nm
Spectral resolution (FWHM) (max.) 8 nm
Cooling Cooled
A/D resolution 16 bits
Interface USB 1.1
Built-in sensor (TE- cooled type)InGaAs linear image sensor
Number of total pixels 256 pixels
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

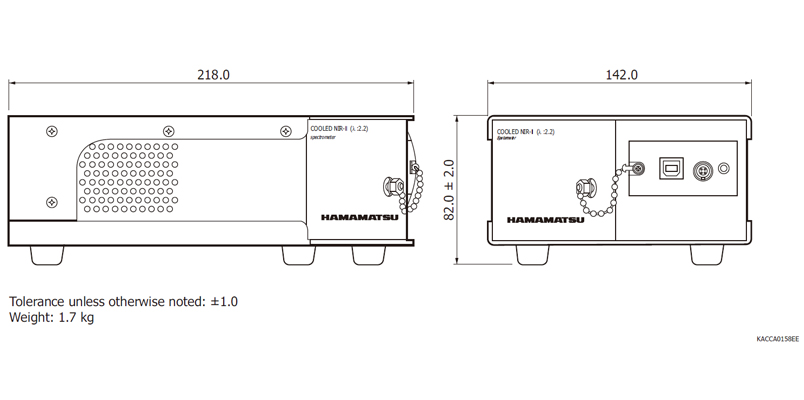

Dimensional outline (unit: mm)
