What is Förster resonance energy transfer?

Förster resonance energy transfer (FRET) refers to the phenomenon where energy is non-radiatively transferred from an excited-state donor molecule to an acceptor molecule when two proteins are in close proximity. In the field of life sciences, this process is often associated with fluorescent molecules and is sometimes called Fluorescence resonance energy transfer.

The efficiency of FRET depends on factors such as the distance and angle between the molecules, as well as the spectral overlap. The distance at which the energy transfer efficiency is 50 % between the donor and acceptor is known as the Förster distance.

To measure FRET, for example, bind a fluorescent dye to protein A and protein B, one as a donor and the other as an acceptor, and measure the donor's or acceptor's fluorescence. When measuring the donor’s fluorescence, as the donor approaches the acceptor, the fluorescence intensity decreases. Conversely, when measuring the acceptor’s fluorescence, as the donor approaches the acceptor, the acceptor’s fluorescence intensity increases. By observing these changes in fluorescence intensity, you can study protein-protein interactions, including changes in distance and structure between the proteins.

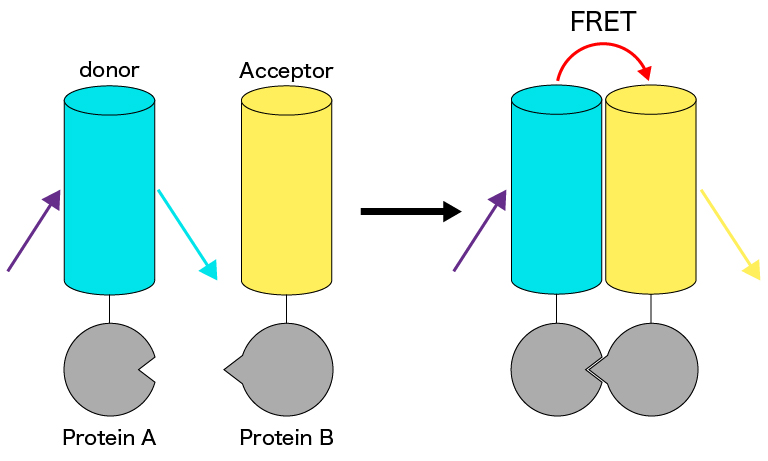

Schematic diagram of intermolecular FRET

Figure 1: Schematic diagram of intermolecular FRET

Example images

Fast Ca²⁺ imaging of YC3.60 expressing HeLa cell

Data courtesy of Masahiro Nakano, Ph.D. and Takeharu Nagai, Ph.D. Department of Biomolecular Science and Engineering, The Institute of Scientific and Industrial Research, Osaka University

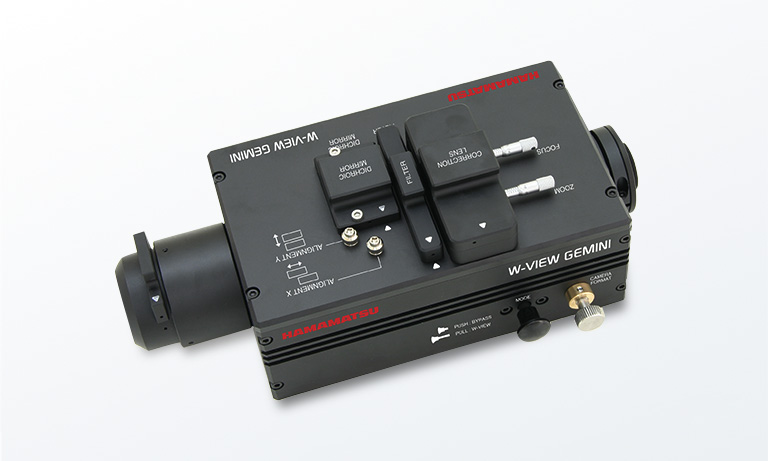

Featured product: Image splitting optics

The image splitting optical system splits the incident light into two wavelengths and forms an image on the camera. It is an optical system for microscopes. By incorporating commercially available dichroic mirrors or half mirrors internally, it allows branching of light.

We offer two models: W-VIEW GEMINI, which uses a single camera, and W-VIEW GEMINI-2C, which uses two cameras. W-VIEW GEMINI-2C enables wider field-of-view imaging due to its use of two cameras.

Click here for more details

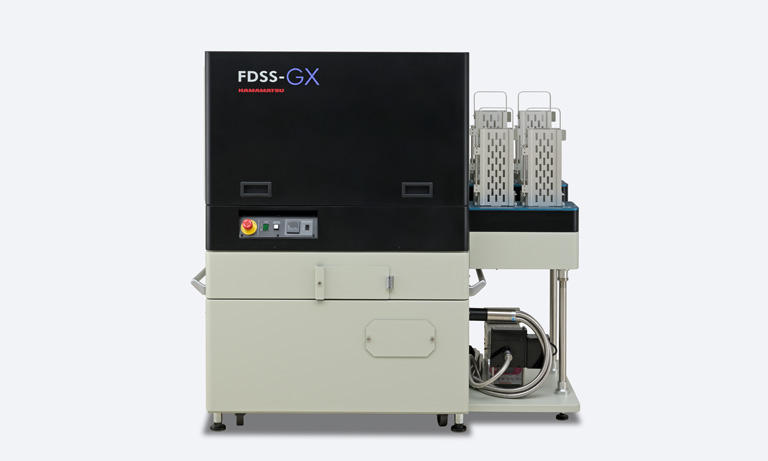

Featured product: FDSS^®-GX Kinetic Plate Imager

The FDSS-GX Kinetic Plate Imager is a system designed for high-throughput screening (HTS) in drug discovery, leveraging our technology developed in the field. It features an FDSS-specific qCMOS^Ⓡ sensor known for its high quantification accuracy in fluorescence/luminescence measurements. The system also incorporates a dispensing head with independent metal piston cylinders (available in 1536-well, 384-well, and 96-well formats) that enables precise and reproducible micro-volume dispensing. This setup allows for simultaneous drug plate dispensing, measurement, and analysis. It supports a variety of assays using FRET.
