Scientific CMOS board level camera

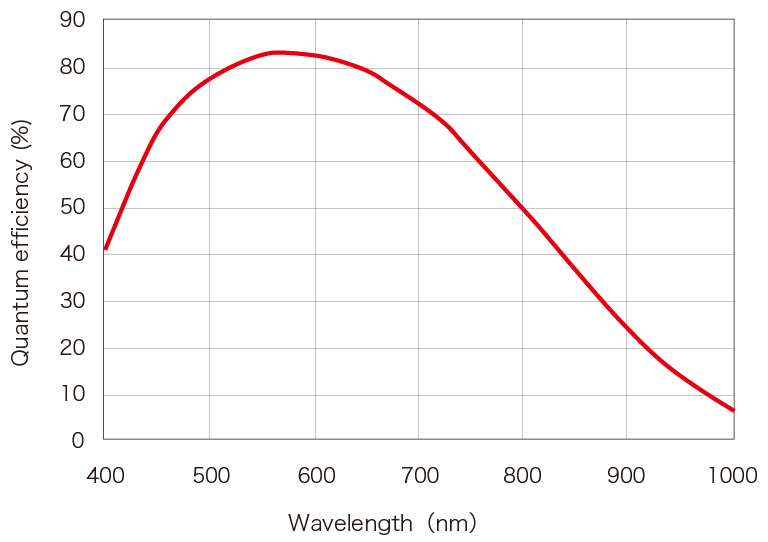

The C11440-52U30 is a compact and highly sensitive board level camera with a scientific CMOS sensor. The camera has over 80 % quantum efficiency. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). This enhanced QE means that you have a possibility of detecting the faintest of signals. Or, for moderately dim samples, that the ideal image is achievable with shorter exposure times.

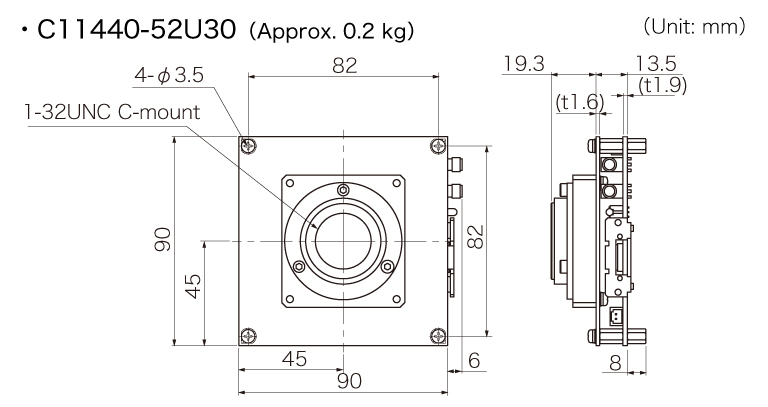

The C11440-52U30 has low camera noise of 2.3 electrons (rms) at 30 frames/s. The compact (90 mm × 90 mm) and light weight design is idea for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.
|Imaging device||Scientific CMOS image sensor|
|Effective no. of pixels||2048 (H)×2048 (V)|
|Effective area||13.312 mm (H)×13.312 mm (V)|
|Full well capacity||30 000 electrons (typ.)|
|Readout speed||30 frames/s (Full resolution) to 25 655 frames/s (512×8 ROI)|
|Readout noise||2.3 electrons (rms) typ., 1.6 electrons (median)typ. *2|
|Exposure time||1 ms to 30 s (Internal trigger mode, Full resolution)*3|
|Dynamic range||18 000:1 typ.*1|
|External trigger mode||Edge trigger, Level trigger, Synchronous readout trigger, Start trigger, Global reset edge trigger, Global reset level trigger|
|Trigger output||3 programmable timing outputs, Low output, High output, Trigger ready output, Global exposure timing output|
|Connector||USB 3.0 microB type|
|A/D converter||16 bit|
|Power supply||DC+12 V|
|Power consumption||Approx. 9 W|
|Ambient operating temperature||0 ℃ to +40 ℃ *5|
|Ambient storage temperature||-10 ℃ to +50 ℃|
|Ambient operating humidity||30% to 80 % (with no condensation)|
|Ambient storage humidity||90 % max. (with no condensation)|
