2 W xenon flash lamp modules
These lamp modules integrate a 2 W xenon flash lamp with a power supply and trigger socket, and are designed to extract maximum performance from the lamp.
The lamp is available in a housing that has the smallest size among lamps of comparable wattage and can operate on a 5 V battery to allow assembly into portable analytical instruments.
Two models are available: one is an easy-to-handle packaged model with low electromagnetic noise, and the other is a cylindrical circuit board model offering a high degree of design freedom.

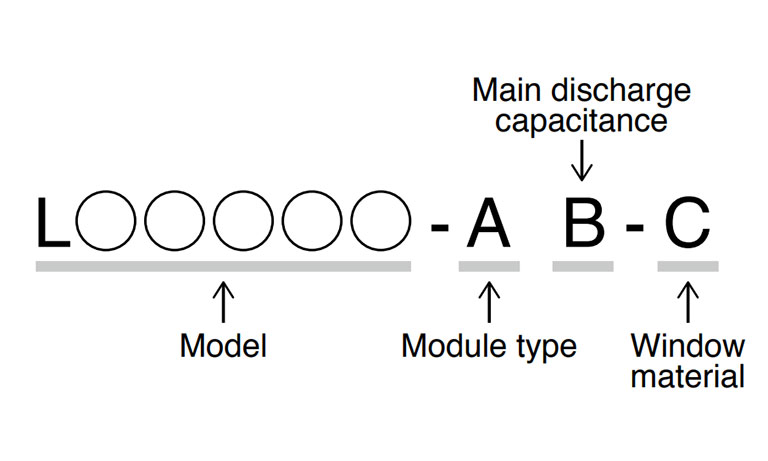

Type number guide
Model
| Type No. | Model |
|---|---|
| L13651 | Packaged model |
| L13821 | Cylindrical circuit board model |
A: Module type
| Suffix | Type |
|---|---|
| 0 | Standard type |
| 1 | SMA fiber adapter type |
NOTE:
Only standard type is available for L13821.
B: Main discharge capacitance
| Suffix | Capacitance |
|---|---|
| 1 | 0.141 µF |
| 2 | 0.094 µF |
| 3 | 0.047 µF |
| 4 | 0.02 µF |
C: Window material
| Suffix | Window material | Spectral distribution |
|---|---|---|
| － | UV glass | 185 nm to 2500 nm |
| 3 | MgF2 |
160 nm to 7500 nm |
NOTE:
MgF2 window is available only for standard module type of L13651 (L13651-0X-3).
Suffix is omitted for UV glass.
Characteristics

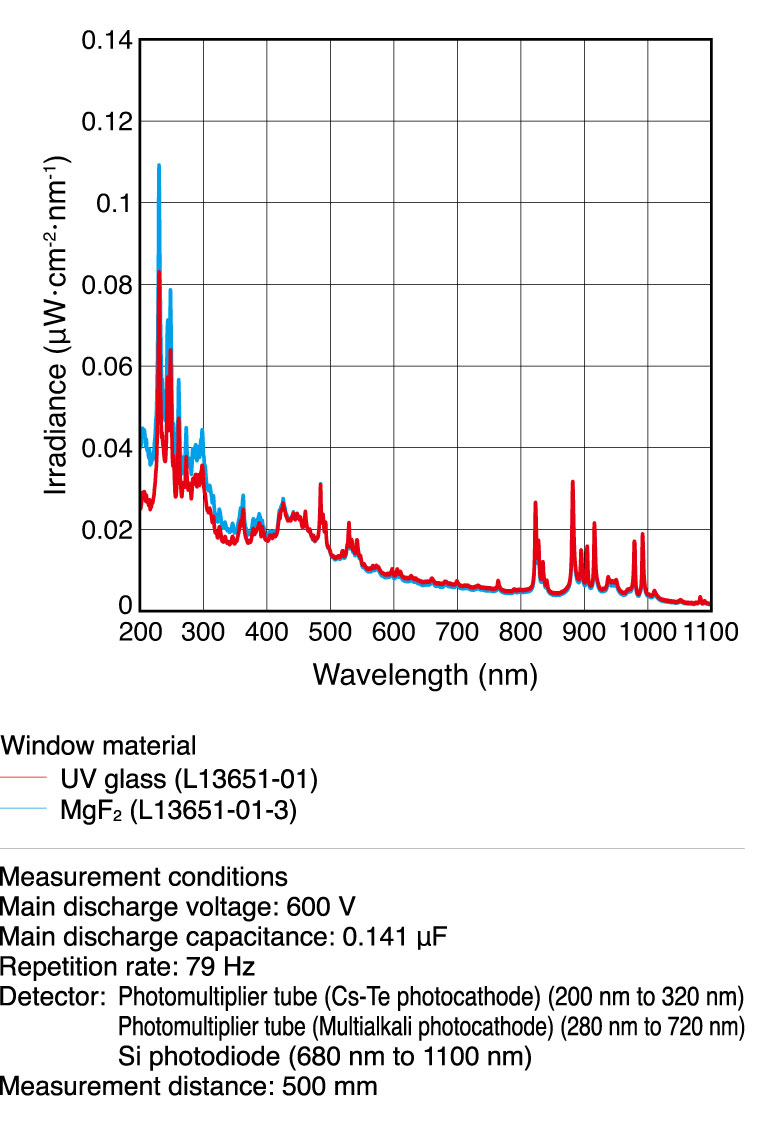

Spectral distribution (Typ.)

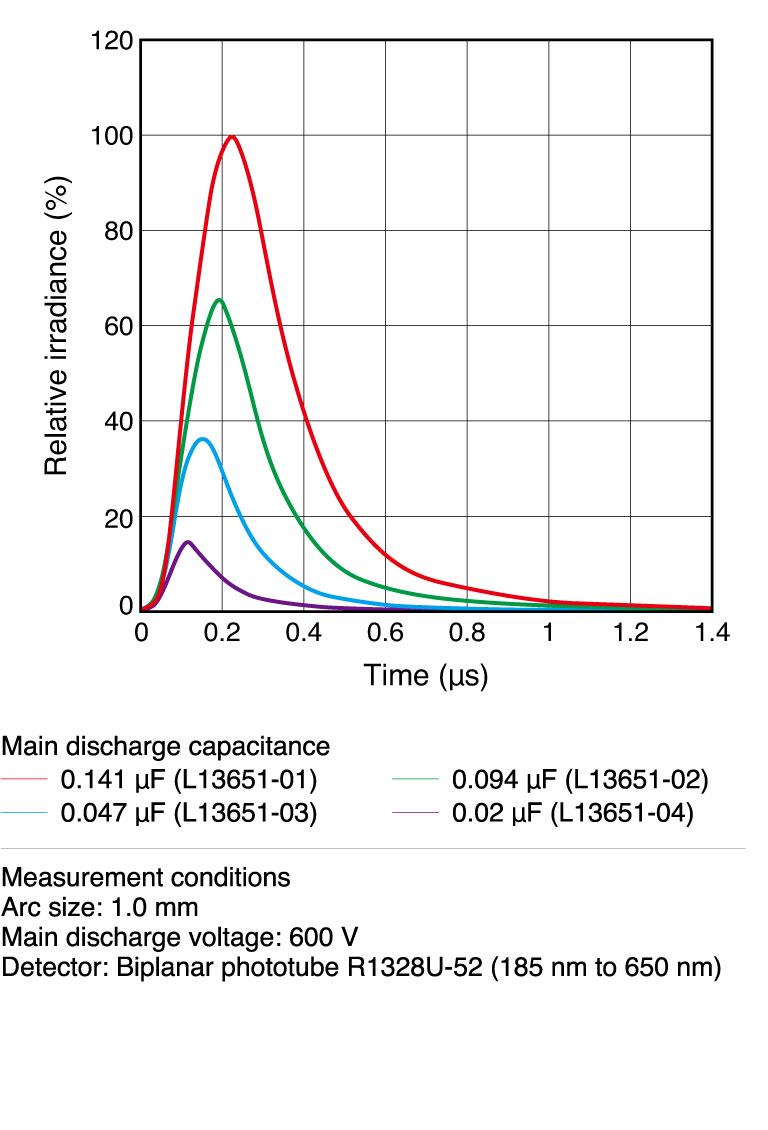

Emission pulse waveform (Typ.)

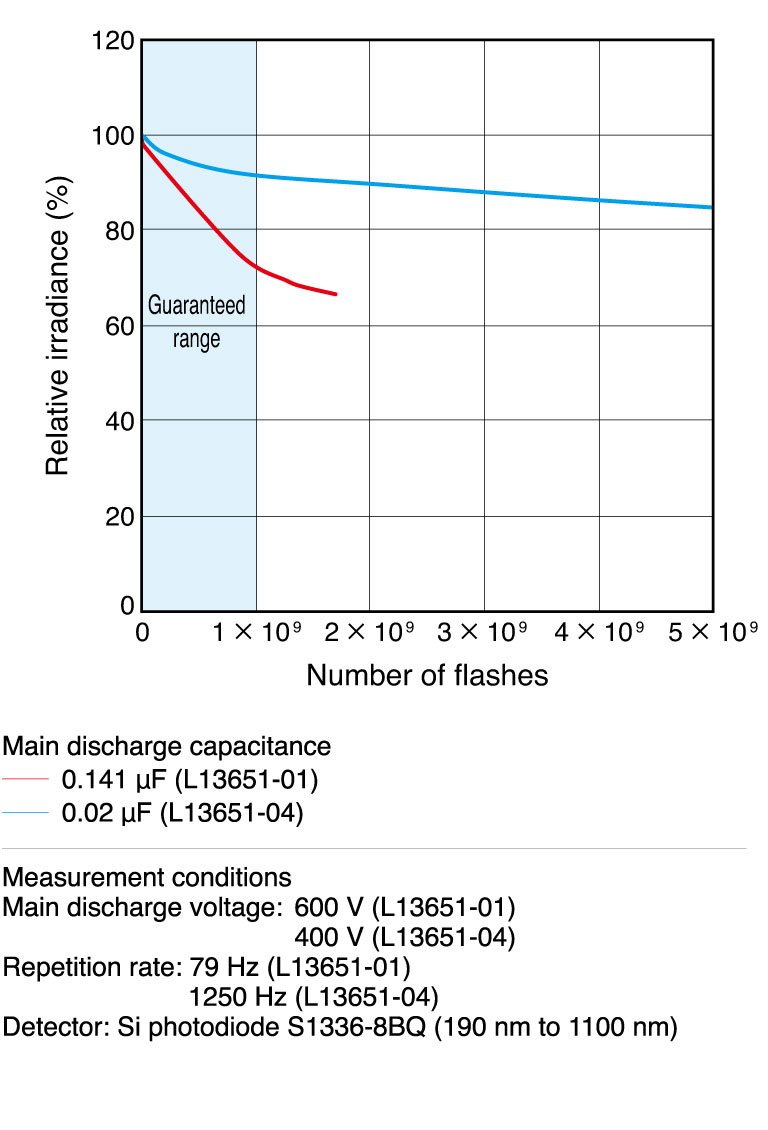

Life characteristics (Typ.)
Specifications
| Parameter | Packaged model | Cylindrical circuit board model | Unit | ||
|---|---|---|---|---|---|
| L13651-01/-02/-03/-04 L13651-11/-12/-13/-14 |
L13651-01-3/-02-3/-03-3/-04-3 | L13821-01/-02/-03/-04 | |||
| Arc size | 1.0 | mm | |||
| Window material | UV glass | MgF2 | UV glass | － | |
| Spectral distribution | 185 to 2500 | 160 to 7500 | 185 to 2500 | nm | |
| Main discharge voltage variable range | Internal (*1) | 400 to 600 | V | ||
| External (*2) | 400 to 600 | ||||
| Main discharge capacitance | 0.141 / 0.094 / 0.047 / 0.02 | μF | |||
| Maximum lamp input energy (per flash) | See operating condition examples | mJ | |||
| Maximum repetition rate | See operating condition examples | Hz | |||
| Maximum average lamp input (continuous) | See operating condition examples | W | |||
| Light output stability (*3)(*4) | Typ. | 0.4 | ％ CV | ||
| 3.0 | ％ p-p | ||||
| Max. | 2.0 | ％ CV | |||
| 5.0 | ％ p-p | ||||
| Guaranteed life (*5) | 1 × 109 | flashes | |||
| Operating time when used with battery | 4 (*6) | h | |||
| Input voltage | 4.75 to 5.5, 10.8 to 13.2 | V | |||
| Input current | 1 | A | |||
| Inrush current | 1.5 | A | |||
| Trigger signal | Rectangular wave 2.5 V to 5 V, pulse width 10 μs or more (*7) | － | |||
| Trigger input impedance | 330 | Ω | |||
| Cooling method | Not required (*8) | － | |||
| Operating temperature range | 0 to +40 | ℃ | |||
| Storage temperature range | -40 to +90 | ℃ | |||
| Operating humidity range | Below 85 % (no condensation) | － | |||
| Storage humidity range | Below 95 % (no condensation) | － | |||
| Applicable standards | EMC standards | IEC/EN 61326-1 Emission limits: CISPR 11 Group 1 Class B Immunity requirements: Table 1 |
－ | － | |
| Safety standards | IEC/EN 62471 Risk Group 3 | ||||
| Environmental standards (RoHS) | IEC/EN 63000 | ||||
| Vibration resistance | 5 Hz to 200 Hz, 15 m/s2 | － | |||
| Shock resistance | 500 | m/s2 | |||
NOTE:
*1: Internal: Adjustable with a trimmer
*2: External: Variable with control voltage from 3.2 V to 4.8 V
*3: Light output stability (at a repetition rate of 10 Hz or more)
Light output stability (% CV) = light output standard deviation / average light output × 100
Light output stability (% p-p) = (maximum light output – minimum light output) / average light output × 100
*4: At 2 W operation (main discharge voltage: 600 V, main discharge capacitance: 0.141 µF, repetition rate: 79 Hz)
*5: Measured with a Hamamatsu Si photodiode S1336-8BQ. The life is defined as the time at which the light output at 190 nm to 1100 nm decreases to 50 % of the initial output level or the light output fluctuation exceeds the specified maximum value when the lamp is operated at 2 W.
*6: Time until the lamp operation stops under the following conditions (spectral irradiance and light output stability are not considered).
Input voltage: 5 V, main discharge voltage: 600 V, main discharge capacitance: 0.141 μF, repetition rate: 79 Hz, battery specs: 5400 mAh / 3.7 V
*7: External trigger only, synchronized at rising edge
*8: Cooling is necessary if the housing temperature exceeds 45 °C during operation.
Operating condition examples
| Type No. | Main discharge capacitance (μF) |
Main discharge voltage (V) |
Maximum lamp input energy (per flash) (mJ) (*9) |
Maximum repetition rate (Hz) (*10) | Maximum average lamp input (continuous) (W) (*11) | ||
|---|---|---|---|---|---|---|---|
| Input voltage: 4.75 V to 5.5 V | Input voltage: 10.8 V to 13.2 V | Input voltage: 4.75 V to 5.5 V | Input voltage: 10.8 V to 13.2 V | ||||
| L13651-01/-11 L13651-01-3 L13821-01 |
0.141 | 400 | 11.3 | 117 | 117 | 2.0 | 2.0 |
| 500 | 17.7 | 113 | 113 | 2.0 | 2.0 | ||
| 600 | 25.4 | 79 | 79 | 2.0 | 2.0 | ||
| L13651-02/-12 L13651-02-3 L13821-02 |
0.094 | 400 | 7.5 | 266 | 266 | 2.0 | 2.0 |
| 500 | 11.9 | 170 | 170 | 2.0 | 2.0 | ||
| 600 | 16.9 | 118 | 118 | 2.0 | 2.0 | ||
| L13651-03/-13 L13651-03-3 L13821-03 |
0.047 | 400 | 3.8 | 400 | 532 | 1.5 | 2.0 |
| 500 | 5.9 | 255 | 340 | 1.5 | 2.0 | ||
| 600 | 8.5 | 177 | 236 | 1.5 | 2.0 | ||
| L13651-04/-14 L13651-04-3 L13821-04 |
0.02 | 400 | 1.6 | 625 | 1250 | 1.0 | 2.0 |
| 500 | 2.5 | 400 | 800 | 1.0 | 2.0 | ||
| 600 | 3.6 | 278 | 555 | 1.0 | 2.0 | ||
NOTE:
*9: Lamp input energy (per flash) (J)
E ＝ 1/2 × Cm × Vm2 Cm: Main discharge capacitance (F), Vm: Main discharge voltage (V)
*10:To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*11: Average lamp input (continuous) (W)
P = E × f E: Lamp input energy (per flash) (J), f: Repetition rate (Hz)
Product lineup
Loading… products
