60 W xenon flash lamps
These are 60 W xenon flash lamps that deliver the highest output among our xenon flash lamps.
Despite their high output, these lamps are highly stable. A built-in reflector type with an even higher output is also provided that boosts the output 1.5 times higher than that of other 60 W lamps.
Characteristics

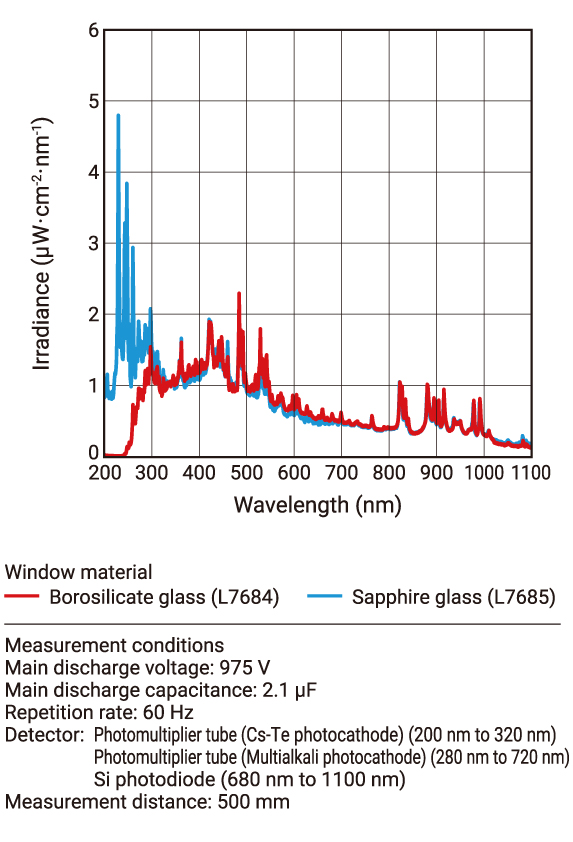

Spectral distribution (Typ.)

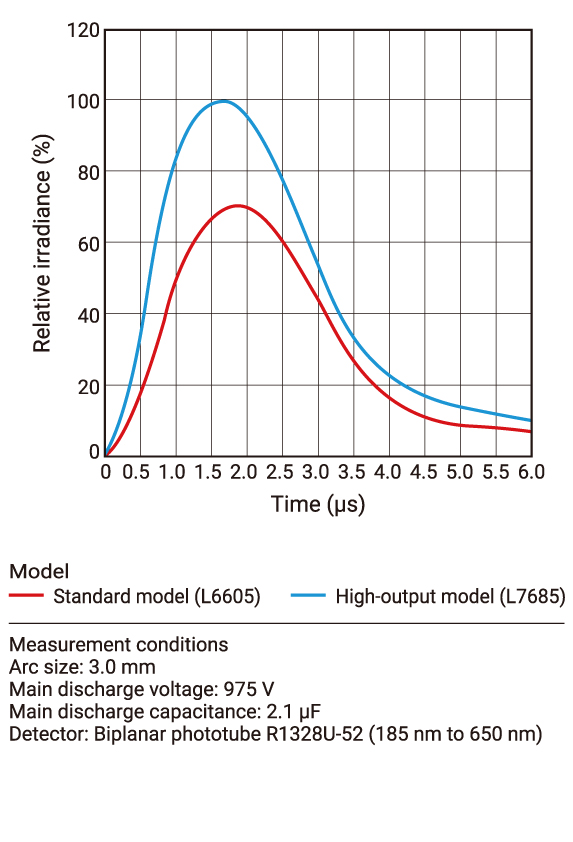

Emission pulse waveform (Typ.)

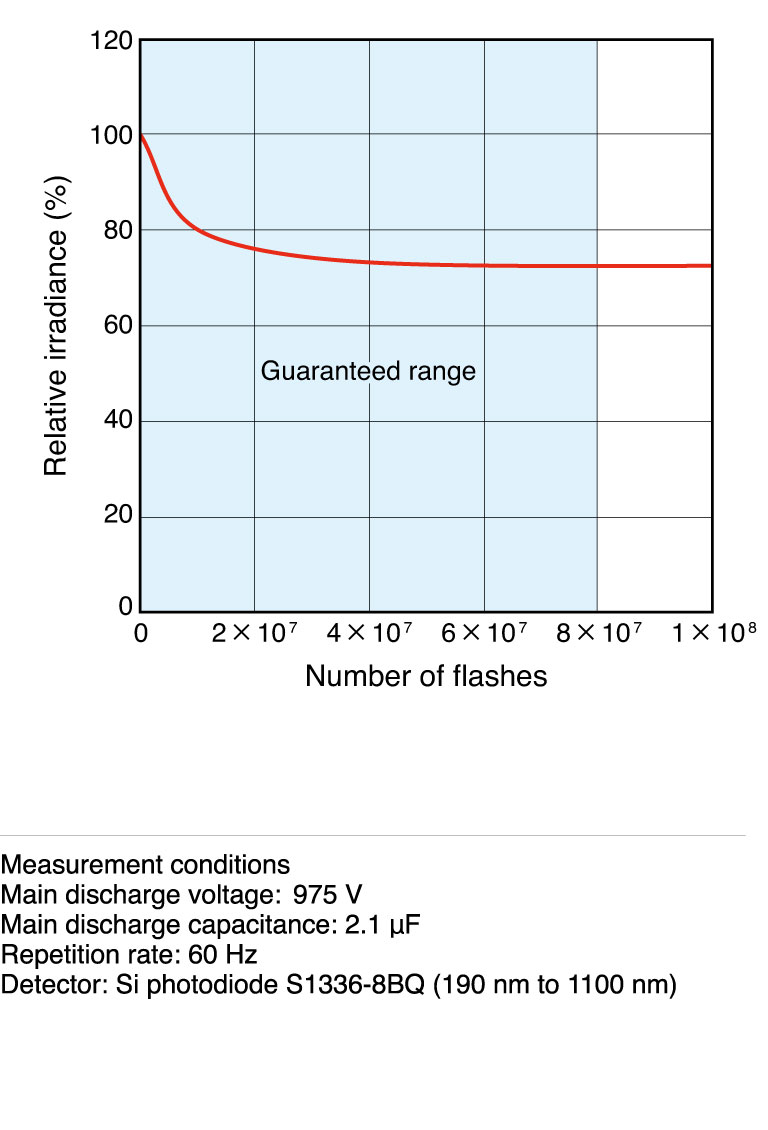

Life characteristics (L7685) (Typ.)
Specifications
| Parameter | Standard model | High-output model | Unit | |||
|---|---|---|---|---|---|---|
| L6604 | L6605 | L7684 | L7685 | |||
| Arc size | 3.0 | mm | ||||
| Window material | Borosilicate glass | Sapphire glass | Borosilicate glass | Sapphire glass | － | |
| Side tube material | Metal | － | ||||
| Spectral distribution | 240 to 2500 | 190 to 5000 | 240 to 2500 | 190 to 5000 | nm | |
| Main discharge voltage range | 500 to 1000 | V | ||||
| Recommended main discharge voltage range | 700 to 1000 | V | ||||
| Maximum lamp input energy (per flash) | See operating condition examples | mJ | ||||
| Maximum repetition rate (*1) | 100 | Hz | ||||
| Maximum average lamp input (continuous) | See operating condition examples | W | ||||
| Light output stability (*2)(*3) | Typ. | 0.7 | ％ CV | |||
| 3.0 | ％ p-p | |||||
| Max. | 1.0 | ％ CV | ||||
| 4.2 | ％ p-p | |||||
| Guaranteed life (*4) | 8 × 107 | flashes | ||||
| Trigger voltage | 5 to 10 | kV p-p | ||||
| Cooling method (*5) | Not required | － | ||||
| Operating temperature range | +5 to +40 | ℃ | ||||
| Storage temperature range | -40 to +90 | ℃ | ||||
| Operating humidity range | Below 85 % (no condensation) | － | ||||
| Storage humidity range | Below 95 % (no condensation) | － | ||||
| Trigger socket (sold separately) (*6) | E6647 | － | ||||
| Cooling jacket (sold separately) (*7) | E6611 | － | ||||
NOTE:
*1: To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*2: Light output stability (at a repetition rate of 10 Hz or more)
Light output stability (% CV) = light output standard deviation / average light output × 100
Light output stability (% p-p) = (maximum light output – minimum light output) / average light output × 100
*3: At 60 W operation (main discharge voltage: 975 V, main discharge capacitance: 2.1 μF, repetition rate: 60 Hz)
*4: Measured with a Hamamatsu Si photodiode S1336-8BQ. The life is defined as the time at which the light output at 190 nm to 1100 nm decreases to 50 % of the initial output level or the light output fluctuation exceeds the specified maximum value when the lamp is operated at a main discharge voltage of 975 V, main discharge capacitance of 2.1 μF and a repetition rate of 60 Hz.
*5: When the maximum average lamp input (continuous) is 15 W or more, cooling is necessary to keep the lamp bulb temperature lower than 150 °C. Use the E6611 cooling jacket available as an option.
*6: See options for information on trigger sockets.
*7: See options for information on cooling jacket.
Operating condition examples
| Main discharge capacitance (μF) |
Main discharge voltage (V) |
Maximum lamp input energy (per flash) (mJ) (*8) |
Maximum repetition rate (Hz) (*9) |
Maximum average lamp input (continuous) (W) (*10)(*11) |
Main discharge capacitor (external connection) (sold separately) (*12) |
Power supply (sold separately) (*13) |
|---|---|---|---|---|---|---|
| 2.1 | 975 | 1000 | 60 | 60 | E7289-02 | C14352 |
| 700 | 515 | 100 | 51.5 | |||
| 0.1 | 1000 | 50 | 100 | 5 | － | |
| 700 | 25 | 100 | 2.5 |
NOTE:
*8: Maximum lamp input energy (per flash) (J)
E ＝ 1/2 × Cm × Vm2 Cm: Main discharge capacitance (F), Vm: Main discharge voltage (V)
*9: To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*10: Average lamp input (continuous) (W)
P = E × f E : Lamp input energy (per flash) (J), f : Repetition rate (Hz)
*11: When operating the maximum average lamp input (continuous) at 60W, use the E7289-02 main discharge capacitor (external connection) available as an option.
*12: For the main discharge capacitor (external), refer to the options.
*13: See options for information on power supply.
Product lineup
Loading…products
| Part no. | Data Sheet |
Product Name |
Arc Size | Lamp Diameter | Spectral Distribution (Short) | Spectral Distribution (Long) | Contact |
|---|---|---|---|---|---|---|---|
|
Sort
|
Sort
|
Sort
|
Sort
|
Sort
|
Sort
|
Sorry, your search did not return any results.
Please try again with different conditions.
Options

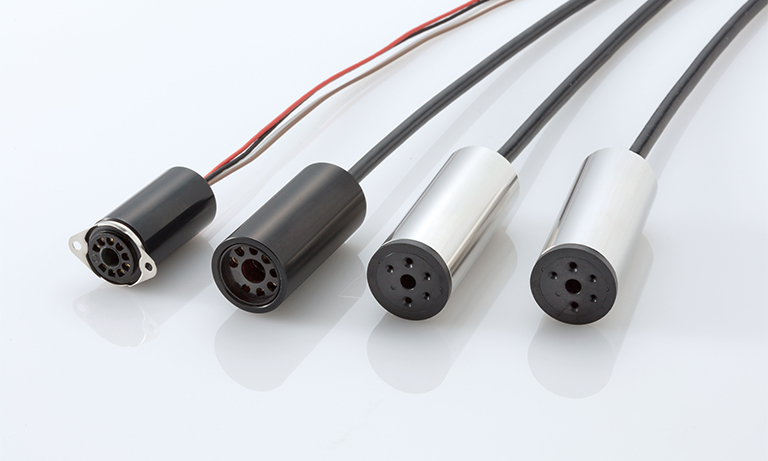

Trigger socket E6647
Hamamatsu provides trigger sockets specifically designed for xenon flash lamps. These trigger sockets are integrated with a high-voltage transformer, voltage-divider resistors, and capacitors in the same compact housing, thus reducing the hassle of drawing up circuit and device designs.

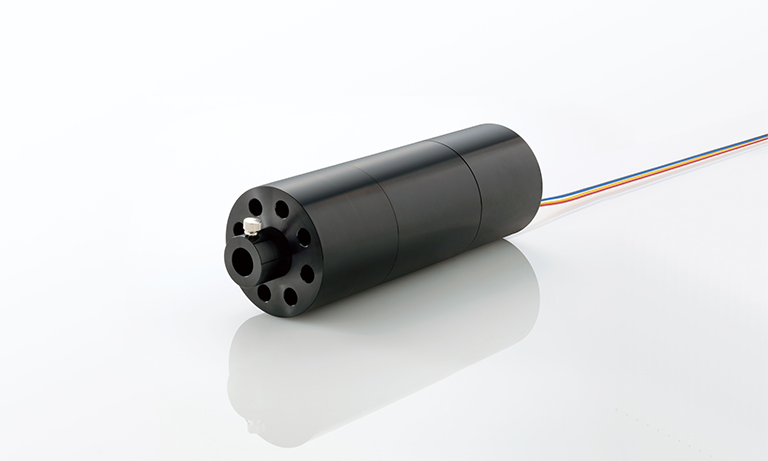

Cooling jacket E6611
The E6611 is a cooling jacket specifically designed for 60 W xenon flash lamps. It helps keep the temperature of the xenon flash lamp and trigger socket at a constant level within the tolerance range to ensure highly stable operation.

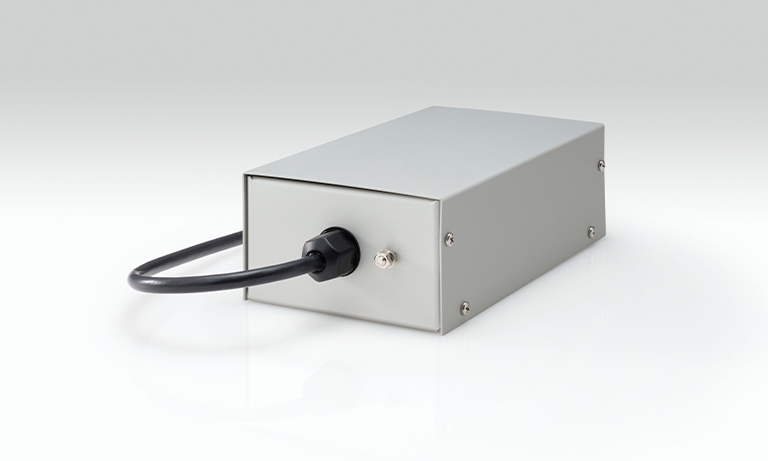

Main discharge capacitor (external connection) E7289-02
The E7289-02 is a main discharge capacitor (2 μF) intended to operate a 60 W xenon flash lamp with a maximum average lamp input (continuous) of 60 W. By just connecting to the dedicated power supply, the E7289-02 enables safe operation.

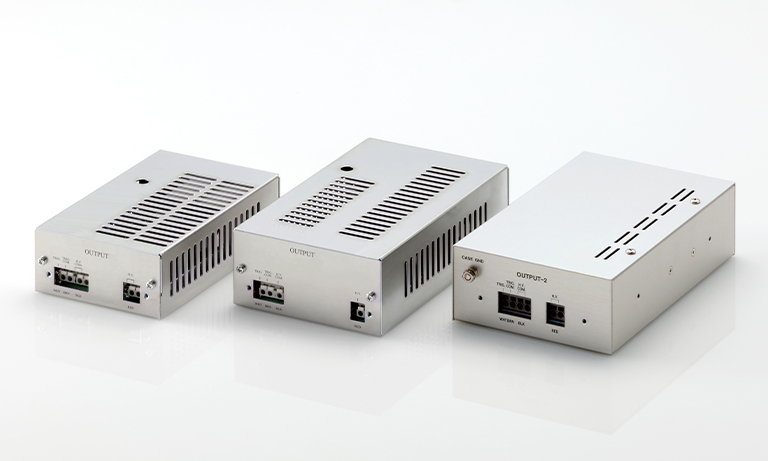

Power supply C14352
