QPM Optical Module
C16999-10
In-line compatible high-speed interference microscopy to detect surface defects（High magnification model）
This is an optical module for building interference microscope, "QPM (Quantitative Phase Microscopy)" which provides nano-scale vertical resolution. Our proprietary technology enables a compact and lightweight module that is capable of high-speed and real-time measurement.
C16999-10 is high magnification model for x 20 / x 10 / x 5 objective lenses.
Features
- Compact and lightweight
- Compatible with in-line configuration (for embedded applications)
- High-speed and real-time measurement
- Reduced total cost
- High magnification types for x 20 / x 10 / x 5 objective lenses
Specifications
| Parameters | High magnification model | Low magnification model | Ultra-low magnification model | Unit | ||||
|---|---|---|---|---|---|---|---|---|
| C16999-10 | C16999-20 | C16999-30 | ||||||
| Objective lens (sold separately) | A17086-10 | A17086-20 | A17086-30 | A17086-40 | A17086-50 | A17086-60 | A17086-70 | ‐ |
| Lens magnifications | x 20 | x 10 | x 5 | x 10 | x 5 | x 2 | x 1.25 | - |
| Vertical resolution*1 | 0.5 nm or less | nm | ||||||
| Horizontal resolution | 0.72 | 1.1 | 2.2 | 1.1 | 2.2 | 4.1 | 8.1 | μm |
| Field of view | 0.707 × 0.517 | 1.41 × 1.04 | 2.83 × 2.07 | 1.41 × 1.04 | 2.83 × 2.07 | 7.07 × 5.17 | 11.3 × 8.28 | mm |
| QPM image acquistion rate*2 | 25 | fps | ||||||
| Z measurement range | ±1.3 | ±3 | ±12 | ±3 | ±12 | ±12 | ±15 | μm |
| W.D. | 3.1 | 11 | 20 | 11 | 20 | 6.2 | 5 | mm |
*1 Reproducibility of the optical path length measured for the level difference on a height-standard test chart.
*2 When shooting ato a camera frame rate of 200 fps
* The specifications are the optical performance when using each objective lens combined by our recommended camera and our recommended lens tube.
Dimensions

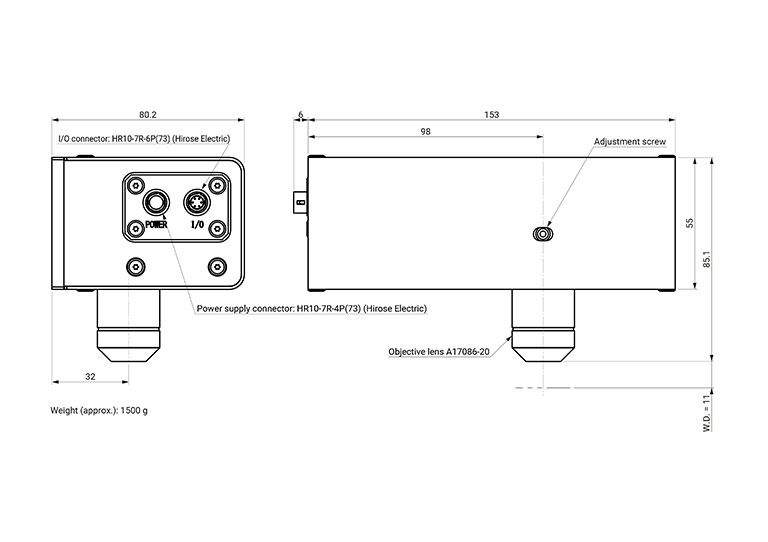

Representative example：QPM optical module C16999-10 ＋ Objective lens A17086-20
- Confirmation
-
