APD module is designed for easy use of Si APD.
|Type||Short wavelength type|
|Effective photosensitive area||φ1.0 mm|
|Temperature stability of gain (typ.)||±2.5 %|

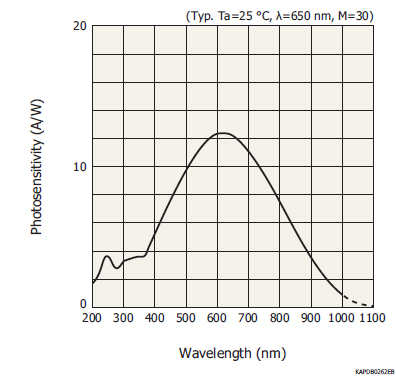

|Photoelectric sensitivity (typ.)||-2.5 × 104 V/W|
|Low Band Cut-off Frequency (typ.)||0.004 MHz|
|High Band Cut-off Frequency (typ.)||100 MHz|
|Supply voltage (typ.)||5 V|
|Measurement condition||Photoelectric sensitivity: M=30 Temperature stability of gain: 25±10 ℃, M=30|
