Si APD

S12060-05

Low temperature coefficient, for 800 nm band

This is a 800 nm band near-infrared Si APD that can operate stably over a wide temperature range. This is suitable for applications such as optical rangefinders and FSO (free space optics).


Features
- Temperature coefficient of breakdown voltage: 0.4 V/℃
- High-speed response
- High sensitivity and low noise

Type Near infrared type
(Low temperature coefficient)
Photosensitive area φ0.5 mm
Package Metal
Package Category TO-18
Peak sensitivity wavelength (typ.) 800 nm
Spectral response range 400 to 1000 nm
Photosensitivity (typ.) 0.5 A/W
Dark current (max.) 1 nA
Cutoff frequency (typ.) 900 MHz
Terminal capacitance (typ.) 2.5 pF
Breakdown voltage (typ.) 200 V
Temperature coefficient of breakdown voltage (typ.) 0.4 V/℃
Gain (typ.) 100
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=800 nm, M=1

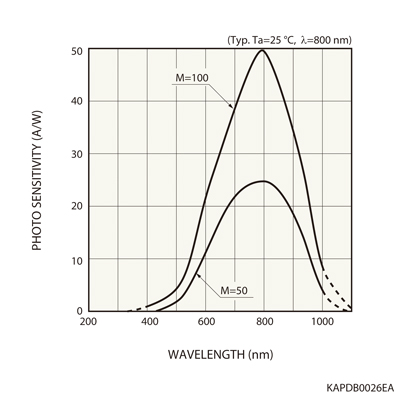

Spectral response

Dimensional outline (unit: mm)
