Si APD

S5345

Short wavelength type APD


Features
- High sensitivity and low noise in UV to visible range

Type Short wavelength type
(Low bias operation)
Photosensitive area φ5 mm
Package Metal
Package Category TO-8
Peak sensitivity wavelength (typ.) 620 nm
Spectral response range 200 to 1000 nm
Photosensitivity (typ.) 0.42 A/W
Dark current (max.) 100 nA
Cutoff frequency (typ.) 8 MHz
Terminal capacitance (typ.) 320 pF
Breakdown voltage (typ.) 150 V
Temperature coefficient of breakdown voltage (typ.) 0.14 V/℃
Gain (typ.) 50
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=620 nm, M=1

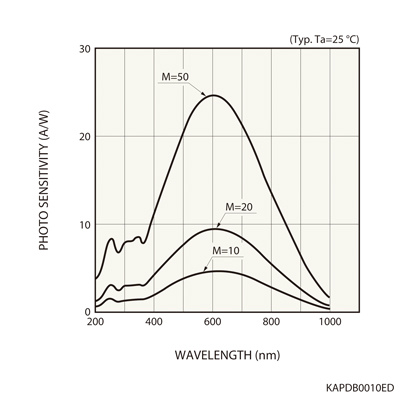

Spectral response

Dimensional outline (unit: mm)
