Si APD

S8890-30

Long wavelength type APD


Features
-High sensitivity
-High gain
-Low terminal capacitance

Type Near infrared type
Photosensitive area φ3 mm
Package Metal
Package Category TO-8
Peak sensitivity wavelength (typ.) 940 nm
Spectral response range 400 to 1100 nm
Photosensitivity (typ.) 70 A/W
Dark current (max.) 150 nA
Cutoff frequency (typ.) 220 MHz
Terminal capacitance (typ.) 8 pF
Breakdown voltage (typ.) 500 V
Temperature coefficient of breakdown voltage (typ.) 3.5 V/℃
Gain (typ.) 100
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=940 nm, M=100

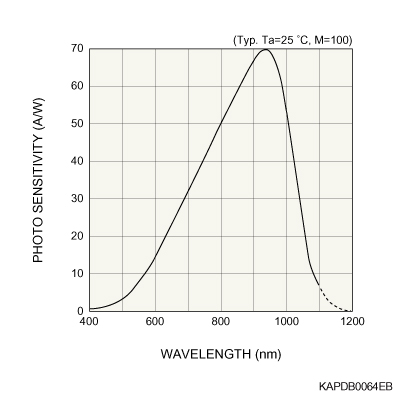

Spectral response

Dimensional outline (unit: mm)
