Hamamatsu offers a variety of 1-D PSDs (position sensitive detectors)molded into plastic packages.
S7105-05 features excellent position detection resolution, high resistance to disturbance background light and high reliability.
|Photosensitive area||1 x 4.2 mm|

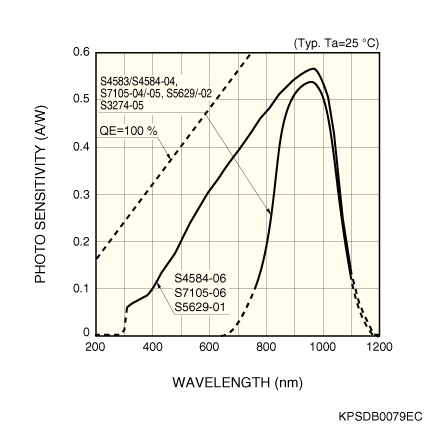

|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.51 A/W|
|Package category||Surface mount type|
|Spectral response range||760 to 1100|
|Dark current (max.)||2 nA|
|Rise time (typ.)||10 μs|
|Terminal capacitance (typ.)||40 pF|
|Interelectrode resistance (typ.)||400 kΩ|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
