One-dimensional PSD

S7105-16

PSD compatible to lead-free reflow soldering

The S7105-16 is a position sensitive detector (PSD) compatible to lead-free reflow soldering. The small and thin leadless package allows reducing the mount area on a printed circuit board.


Features
-Photosensitive area: 1 × 4.2 mm (resistance length: 4.2 mm)
-Compatible lead reflow soldering
-Surface mount type, compact, thin leadless package

Photosensitive area 1 x 4.2 mm
Package Glass epoxy
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.55 A/W
Package category Surface mount type
Spectral response range 320 to 1100
Dark current (max.) 2 nA
Rise time (typ.) 5 μs
Terminal capacitance (typ.) 40 pF
Interelectrode resistance (typ.) 140 kΩ
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

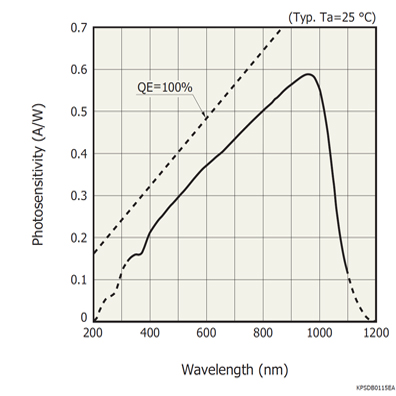

Spectral response

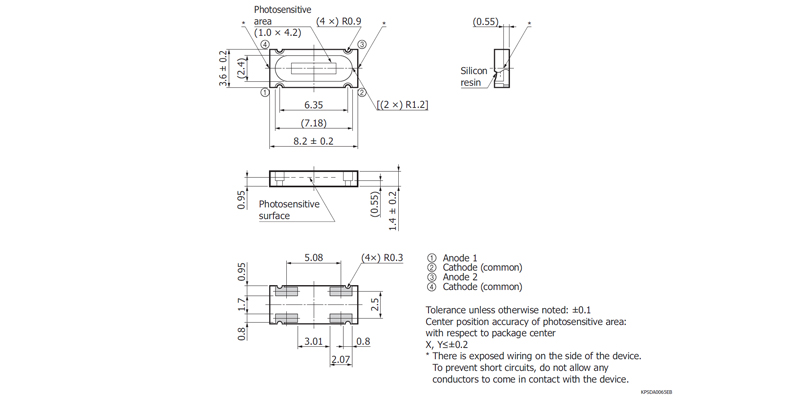

Dimensional outline (unit: mm)
