One-dimensional PSD

S7105-06

1-D PSD with plastic package



Hamamatsu offers a variety of 1-D PSDs (position sensitive detectors)molded into plastic packages.
S7105-06 features excellent position detection resolution, high resistance to disturbance background light and high reliability.


Features
-Excellent position detection resolution
-High reliability
-Thin, miniature plastic package
-Clear package passing wide wavelength range
-Surface mount package is available



Photosensitive area 1 x 4.2 mm
Package Plastic
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.55 A/W
Package category Surface mount type
Spectral response range 320 to 1100
Dark current (max.) 2 nA
Rise time (typ.) 5 μs
Terminal capacitance (typ.) 40 pF
Interelectrode resistance (typ.) 140 kΩ
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

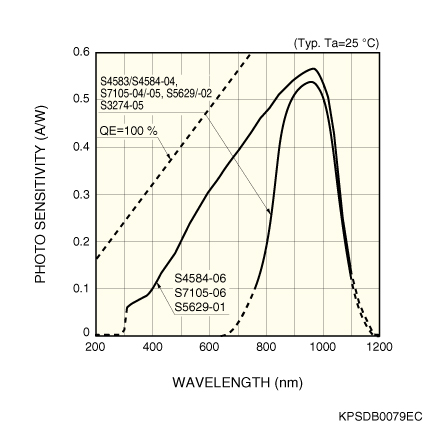

Spectral response

Dimensional outline (unit: mm)
