CMOS linear image sensor

S12198-512Q-01

Smoothly varying spectral response characteristics in UV region

The S12198 series are CMOS linear image sensors using a vertically long pixels (25 × 500 μm). They have smoothly varying spectral response characteristics in UV region and employ a gain switch function.


Features
-Pixel size : 25 × 500 μm
-512 pixels
-Effective photosensitive area length:12.8 mm
- Gain switch function
-Smoothly varing spectral response characteristics in UV region
(spectral response range: 200 to 1000 nm)
-Simultaneous charge integration for all pixels
-Variable integration time function
(electronic shutter function)
-5 V single power supply operation
-Built-in timing generator allows operation with only
start and clock pulse inputs.

Type High-speed readout type
Image size 12.8 x 0.5 mm
Number of effective pixels 512 x 1 pixels
Pixel size 25 x 500 μm
Spectral response range 200 to 1000 nm
Line rate (max.) 18450 lines/s
Cooling Non-cooled
Window material Quartz
Package Ceramic

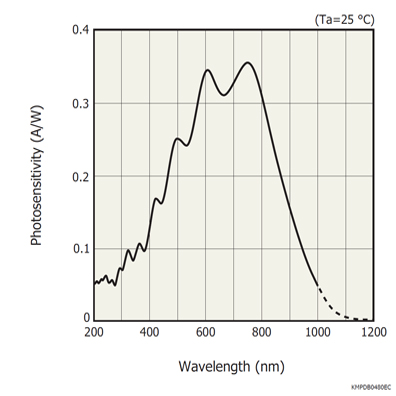

Spectral response

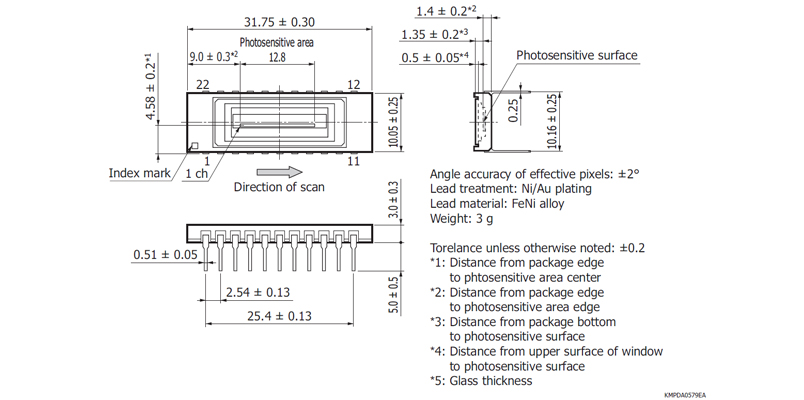

Dimensional outline (unit: mm)
