CMOS linear image sensor
The S10122-256Q-01 is self-scanning photodiode arrays designed specifically as detectors for spectroscopy. The scanning circuit operates at low power consumption and is easy to handle. This photodiode has a large photosensitive area with high sensitivity and smoothly varying spectral response characteristics in UV region.
|Type||With variable integration time for each pixel|
|Image size||12.8 x 0.5 mm|
|Number of effective pixels||256 x 1 pixels|
|Pixel size||50 x 500 μm|
|Spectral response range||200 to 1000 nm|
|Line rate (max.)||1938 lines/s|

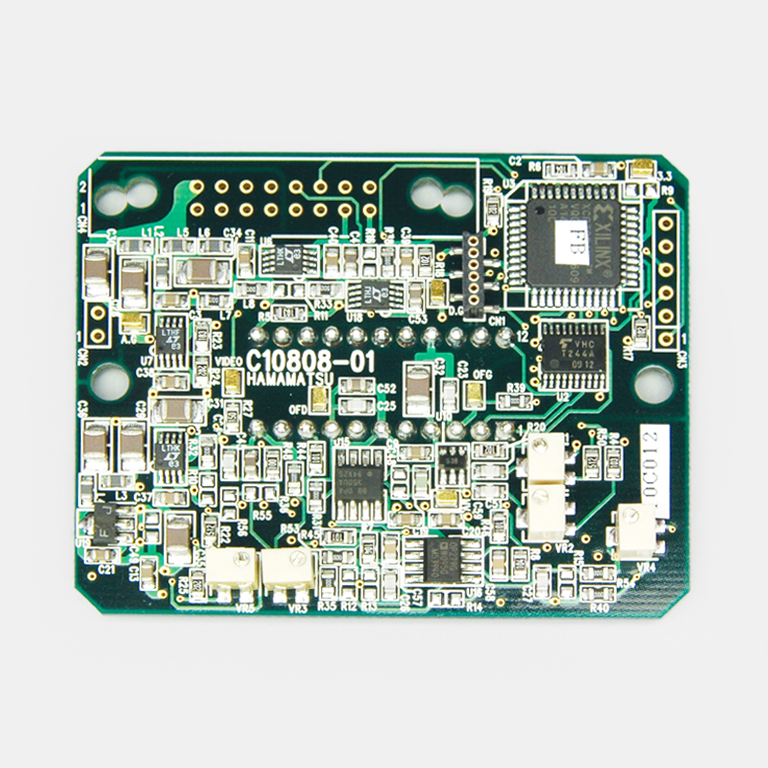

|Dedicated driver circuit||C10808, C10808-01|
|Measurement condition||Typ. Ta=25 ℃, Vdd=5 V, Vb=Vofd=2 V, Vofg=0.2 V, f(CLK)=200 kHz, unless otherwise noted|
