D-type socket assembly

E2924-500

For 25mm dia. Head-on PMT

Applicable PMT 25 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Supply Voltage 1250 V
[Max. Rating] Voltage Divider Current 0.3 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.29 MΩ
Max. Linear Output in DC Mode 14 μA
Notes E2924, with connector

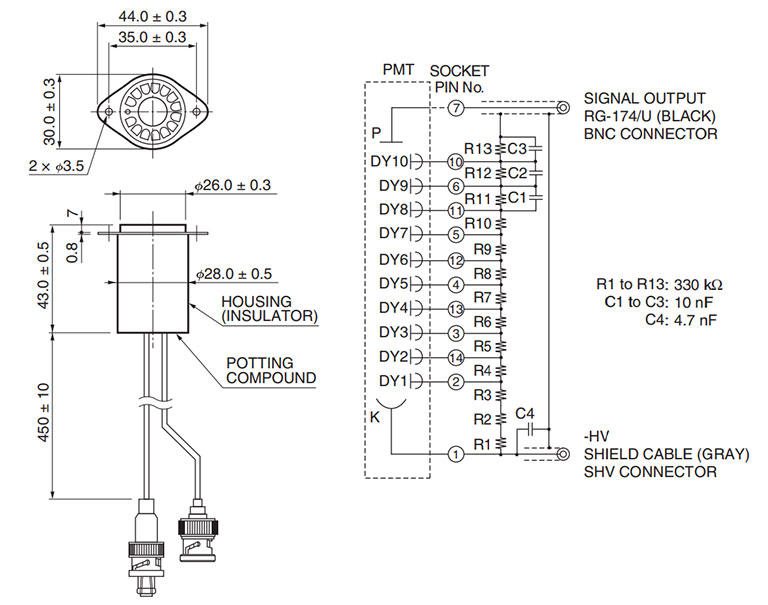

Dimensional outline (Unit: mm)
